NEW KENT USA KMH-630

Equipped With

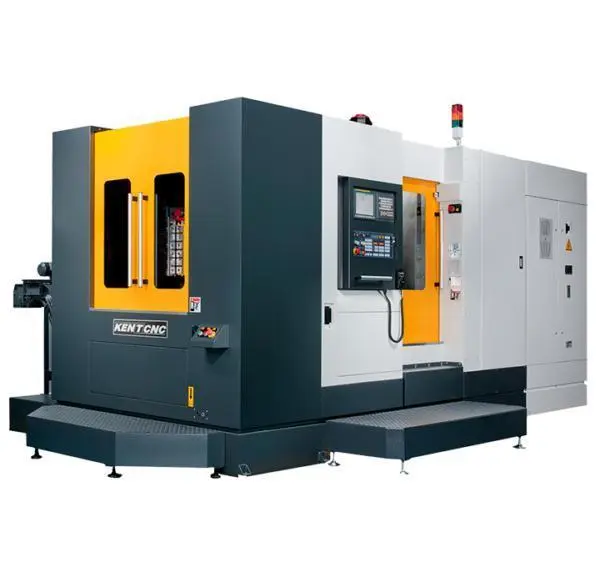

NEW KENT USA KMH-630 CNC HORIZONTAL MACHINING CENTER
Product Highlights
Kent CNC Horizontal Machining Centers with automatic pallet changer are designed for higher efficiency and reliability. With a horizontally oriented spindle, the tool cuts the workpiece on its side. This allows for the chips to fall away from the work table. HMC’s are also designed to be more rigid and with larger tool storage capacities. This design allows for increased repeatability and overall versatility. Horizontal Machining Centers without pallet changers are also available if you are just looking for a more rigid solution over a vertical machining center.
Proven Horizontal Machining Center Design
The Kent CNC Horizontal Machining Center Series with automatic pallet changer combine proven machine design with advance technology in control and manufacturing.  Reliability and performance make this series a favorite among demanding job shops and in-house productions alike.  The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.
Travels of up to 60.2″ x 49.2″ x 49.2″
Up to 31.5″ x 31.5″ rotary table size
Up to 4,409 lbs work load
Fanuc 0i-MD controller
Full package of Fanuc servo system
SPECIFICATIONS
Pallet Size                                                  24.8" x 24.88"
Auto Pallet Changer                                  Yes
Travels
    X Axis                                                    40.2"
    Y Axis                                                    33.4"
    Z Axis                                                    35
Spindle Center To Work Table                  2" - 30.5"
Spindle Nose To Work Table Center         7.87" - 42.9"
Max Load Weight                                     2645 Lbs
Spindle Taper                                            BT-50
Spindle Speed                                          6,000
Spindle Motor                                          15 / 18.5 HP (18.5/22 HP)
Rapid Traverse                                         24 M/Min (Opt 36 M/Min)
Cutting Feedrate                                      1 - 6,000 mm/min
Tool Selection                                          40 ATC (Opt 60 or 90 or 120)
Pallet Change Time                                  12 Sec
Approx. Dimensions                                262.4" x 164.4" x 142.6"
Approx. Weight                                       59,524 Lbs / 68,343 Lbs
