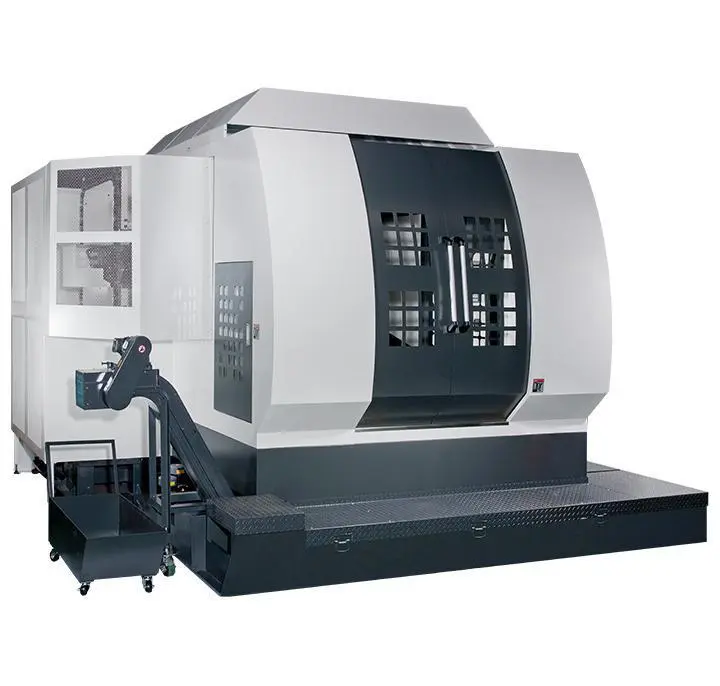

NEW KENT USA MH-800

Equipped With
NEW KENT USA MH-800 SINGLE PALLET CNC HORIZONTAL MACHINING CENTER
Product Highlights
The Kent CNC Horizontal Machining Center Standard Series combine proven machine design with advance technology in control and manufacturing.  Reliability and performance make this series a favorite among demanding job shops and in-house productions alike.  The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.
Travels of up to 39.4″ x 25.6″ x 29.5″
Up to 31.5″ x 31.5″ rotary table size
Up to 4,409 lbs work load
Fanuc 0i-MD controller
Full package of Fanuc servo system
SPECIFICATIONS
APC                                        No
Table Size                               31.5" X 31.5"
Travels
     X Axis                                 39.4"
     Y Axis                                 25.6"
     Z Axis                                 29.5
Max Load Capacity                 2645 Lbs
Spindle Taper                          BT-50
Spindle Speed                         45-4500 RPM (Opt 50-6000 RPM)
Cutting Feedrate                     1-157 IPM
No Tools                                  60 ATC
Spindle Motor                         20 / 24 HP
X/Y/Z Servo Motors                5 HP
Approx. Dimensions               207" x 182" x 121"
Approx Weight                       29,762 Lbs
