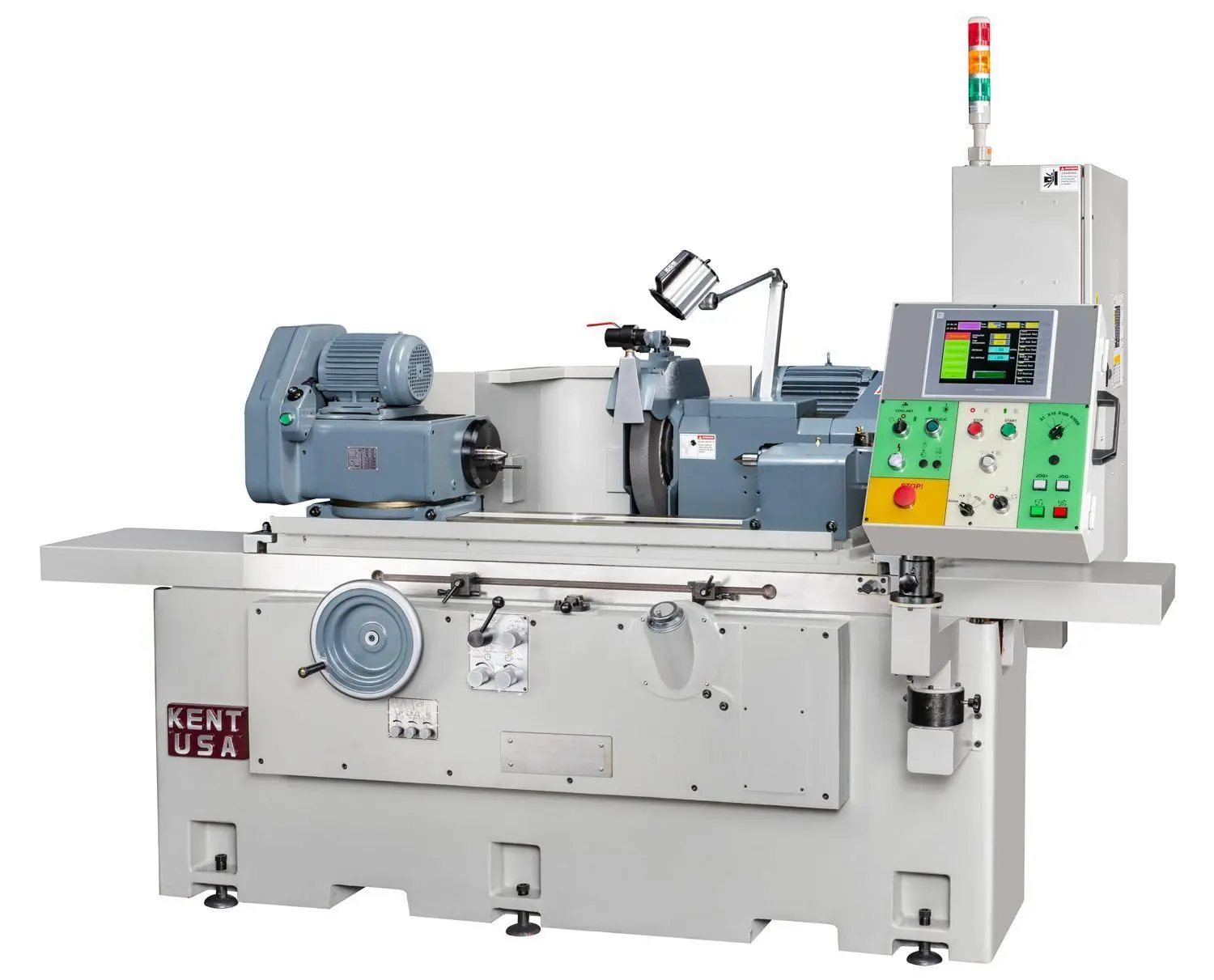

NEW KENT KUG-2760/NC

Equipped With
NEW 10.6" X 23.6" KENT USA MODEL KUG-2760H/NC CYLINDRICAL GRINDER
FEATURES
Nitride hardened, super-finished spindle
Variable speed workhead rotates 90° CCW and 30° CW
Rapid advance and retract of wheel head allows for quicker setup and check of grind-in dimensions
Hydraulically driven longitudinal traversal
Manual infeed for H model; manual and automatic infeed with plunge cycle on NC model
Advanced Hydrostatic Lubrication System
SPECIFICATIONS
Max Grinding Length                                         23.6"
Max Work Swing                                                10.6"
Max. Load Between Centers                              154 Lbs
Max External Grinding Diameter                        Ø9.8"
Grinding Wheel OD x Width x ID                       16" x 1-2" x 5"
Grinding Wheel Speeds (2 Range Pulley)          1500 RPM  /  1600 RPM
Workhead SPindle Swivel Angle                        120 Deg
Workhead Spindle Center Taper                        MT# 4
Workhead Spindle Rotation                              Forward & Reverse
Workhead Spindle Speed Range                      11-500 RPM
Tailstock Taper                                                   MT# 4
Table Swivel Angle                                            -11, +6 Deg
Table Traverse Speed                                        1.96 - 157 IPM
Worktable Min Travel                                        0.31"
Hand Wheel Feed/Rev                                      0.79"
Wheel Spindle Motor                                       5HP
Workhead Spindle Motor                                 0.5 HP
Hydraulic Pump Motor                                     2 HP
Wheel Spindle Lube Pump Motor                    1/4 HP
Coolant Pump Motor                                       1/4 HP
Internal Grinding Spindle Motor                      2 HP
Wheel Spindle Lube Tank                                 5.8 Gal
Hydraulic Fluid Tank                                         15.9 Gal
Coolant Tank                                                     26.5 Gal
Approx Dimensions                                          110" x 65" x 72"
Approx Weight                                                  6930 Lbs
Accessories
Standard Accessories
Grinding wheel and flange
Wheel dresser (table mount style)
Tools and tool box
Coolant tank and pump
Work lamp
Optional Accessories
Internal grinding attachment
Diamond tool holder
Grinding wheel dressing
Angular truing device
Radius truing device
Cam-locked type driving dog
Work holders
2-point steady rest
3-point steady rest
Adjustable 3-jaw scroll chuck
Magnetic coolant separator
Paper filter
Wheel balancing stand & arbor
