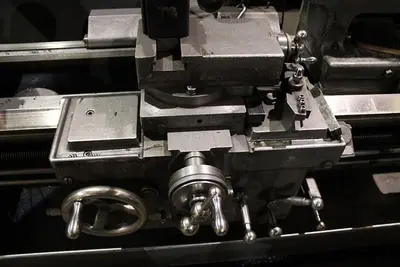

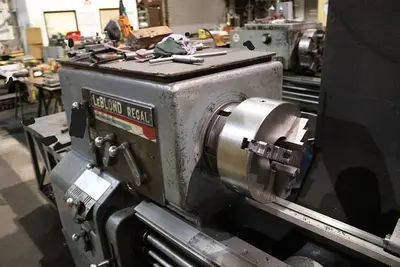

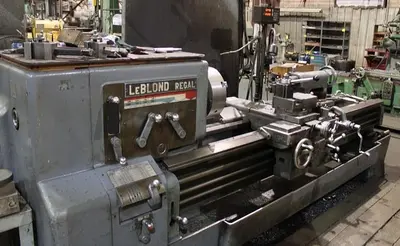

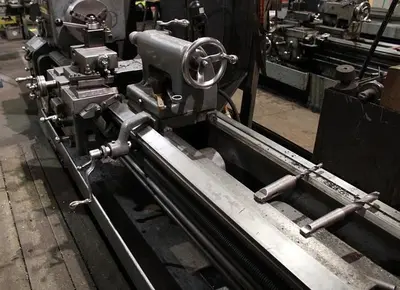

21/22.25" x 72" LEBLOND "REGAL" ENGINE LATHE w/DIGITAL READOUTS

Equipped With
21/22.25" x 72" LEBLOND "REGAL" ENGINE LATHE w/DIGITAL READOUTS
New 1961
EQUIPPED WITH:
Digital Readouts
12" 3-Jaw Chuck w/Jaws

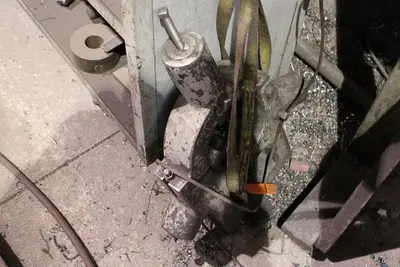

Flame Hardened Bed Ways - (2) Steady Rests

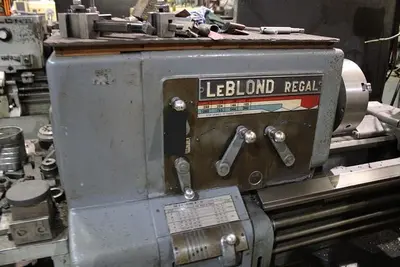

Quick Change Gear Box and Threading Dial
Full Length Coolant-Chip Pan

SPECIFICATIONS:
Hole Thru Spindle 2.1875"
Swing Over Bed Ways, Rated 21"
Swing Over Bed Ways, Actual 22.25"
Swing Over Cross-Slide 14.25"
Distance Between Centers 72"
Cross-Slide Cross-Feed Travel 13.25"

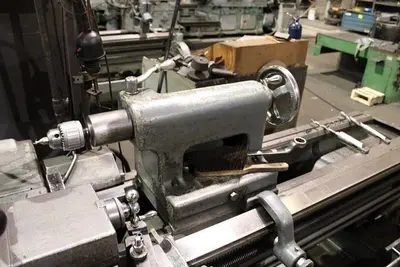

Tailstock, Spindle Diameter 3.125"
Tailstock, Spindle Travel 7.5"
(12) Spindle Speeds, Range 27 to 1080 RPM
(56) Carriage Longitudinal Feeds .0036 to .205 IPR

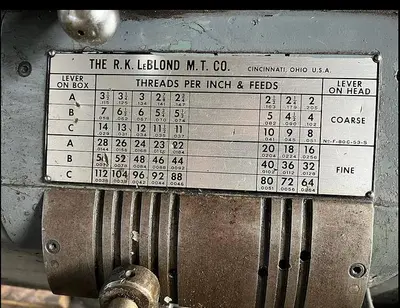

(56) Thread Changes, Range 2 to 112 TPI
Main Motor, Horsepower/RPM 10 HP/1735 RPM
Electrical System 220-440/3/60
