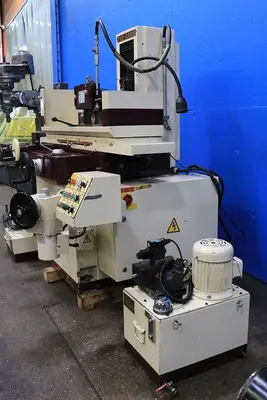

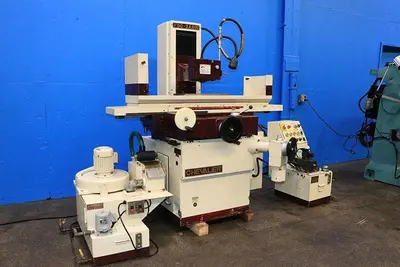

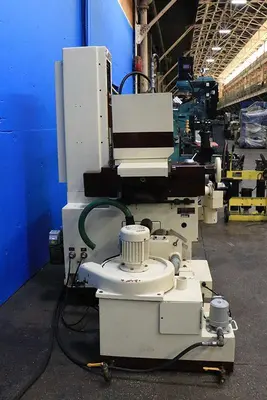

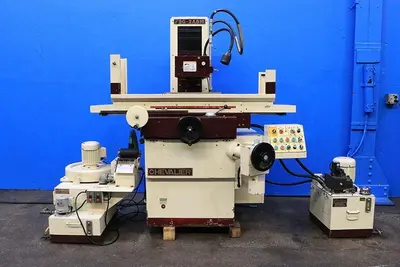

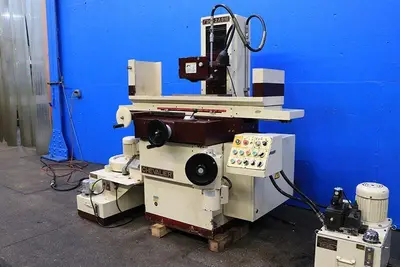

8" X 18" CHEVALIER MODEL FSG-2A818 PRECISION SURFACE GRINDER
New 1998
MAX. GRINDING CAPACITY ..................... 8" X 18"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC .... 19- 3/4"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ....... 21"
MAX. CROSSFEED TRAVEL, AUTOMATIC ............. 9"
MAX. CROSSFEED TRAVEL, MANUAL ................ 9- 1/2"
DIST. FROM SPINDLE CENTER TO TABLE ........... 18"
VARIABLE TABLE SPEED, HYDRAULIC ........... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ............. 0.02" TO 0.4"
POWER RAPID CROSS TRAVERSE RATE .............. 48" IPM
CROSSFEED HANDWHEEL, PER GRADUATION .......... 0.001"
PER REVOLUTION ............................... 0.2"
MICROFEED, PER REVOLUTION .................... 0.005"
PER GRADUATION ............................... 0.00005"
POWER RAPID TRAVERSE RATE, VERTICAL .......... 13" IPM
SPINDLE MOTOR ................................ 2 HP
STANDARD GRINDING WHEEL ...................... 8" DIA.
APPROX. WEIGHT ............................... 2,730 LBS.
APPROX. FLOOR SPACE REQUIRED ............. 83" X 61" X 75"H
EQUIPPED WITH:
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED POWER RAPID WHEELHEAD POSITIONING
ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B & PRECISELY
HAND-SCRAPED FOR ACCURACY.
FINE FEED KNOB FOR VERTICAL AXES (.0001" GRAD.)

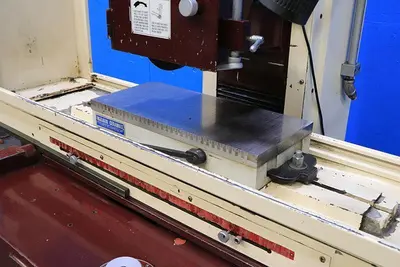

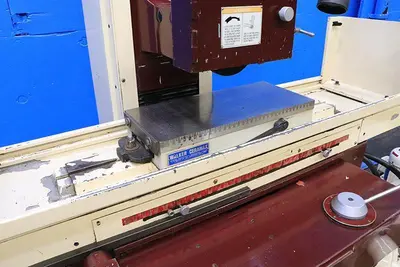

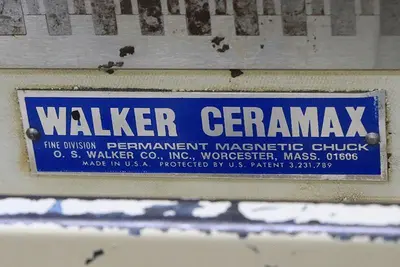

8" X 18" O.S. WALKER “CERAMAX” FINE DIVISION PERMANENT MAGNETIC CHUCK

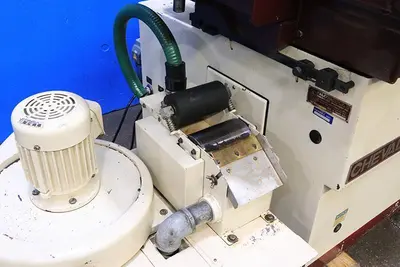

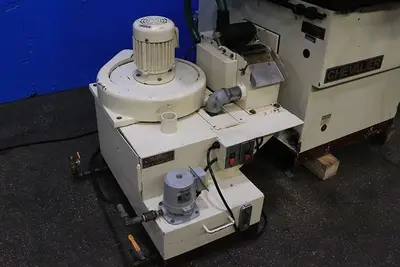

COMBINATION COOLANT SYSTEM & DUST COLLECTOR
8" GRINDING WHEEL

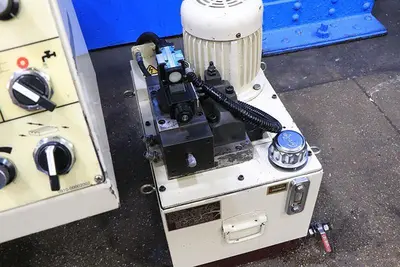

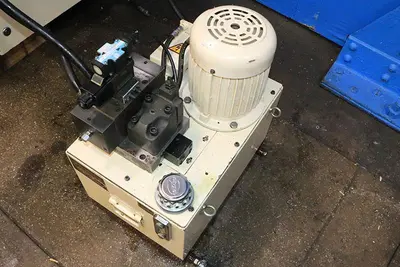

EXTERNAL HYDRAULIC SYSTEM

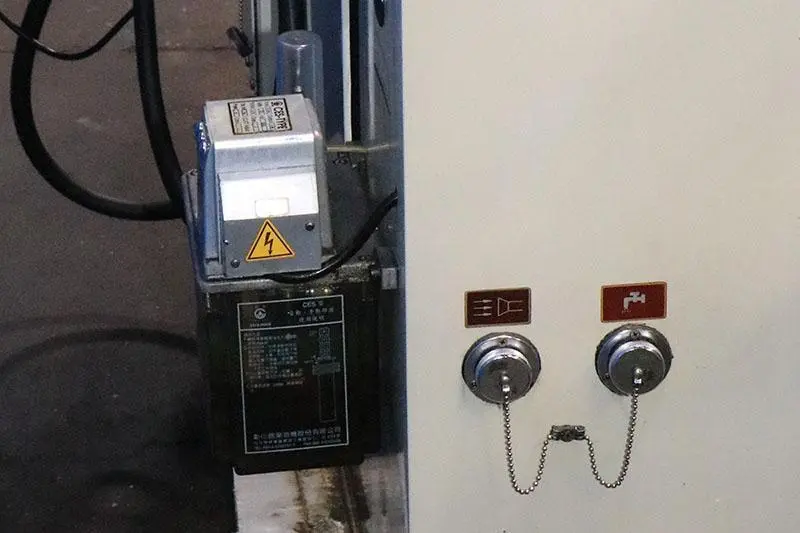

AUTO LUBE SYSTEM
2 H.P./3/60/220-440 VOLT SUPER-PRECISION DIRECT DRIVE SPINDLE
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
