3" X 3" X 5/15" AKYAPAK MODEL APK 81 ANGLE ROLL

Equipped With
3" X 3" X 5/15" AKYAPAK MODEL APK 81 ANGLE ROLL
New
EQUIPPED WITH:
Machine body is steel (ST-52) construction
On APK81 rolls are driven by a hydraulic motor+planetary gearbox and gears
Shafts made of special steel, hardened and grounded
APK81 guide rolls are adjustable manually in one direction
One set standard rolls
Hydraulic guide rolls
Manual lubrication
Lower rolls hydraulic moveable up and down
Digital display for lower rolls
Separate and moveable control panel
Horizontal & vertical working
Suitable for CE

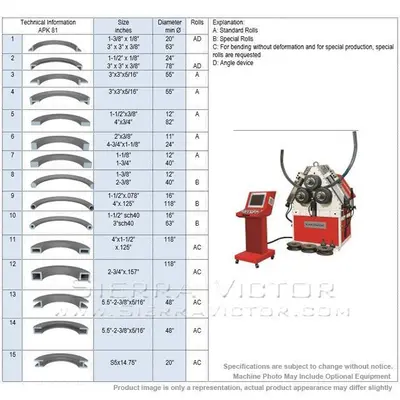

SPECIFICATIONS:
Roll Diameter Ø                             inch          9.65”
Shaft Ø                                           inch          3.15”
Rolling Speed                                 ft/min       13’ per/min.
Motor Power                                  hp             6.8
Length                                            Ft              2.25′
Height                                             Ft              6.1’
Width                                              Ft              4.43’
Weight                                            Ibs             3,285
