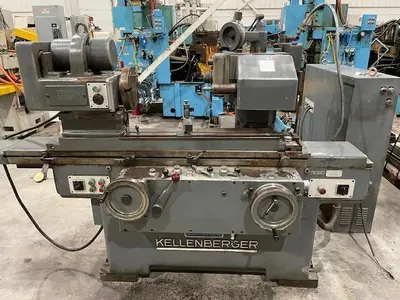

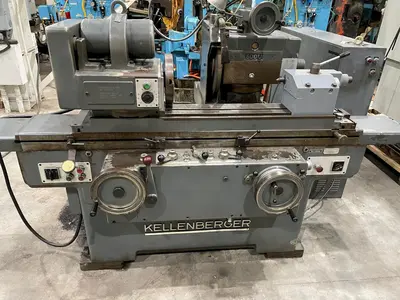

USED KELLENBERGER MODEL 600U ID/OD UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER
Overview
Specifications
Equipped With
USED KELLENBERGER MODEL 600U ID/OD UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER
New 1978
Equipped with:

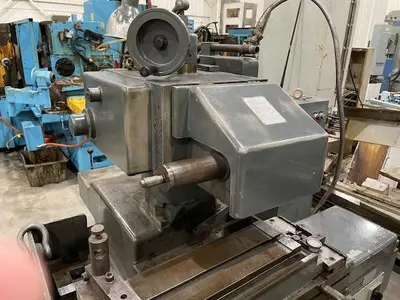

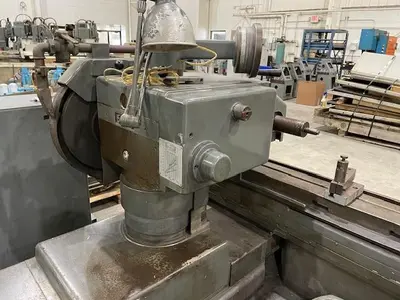

Swing-around spindle, ID & OD Grinding Spindles
Tailstock for OD Grinding

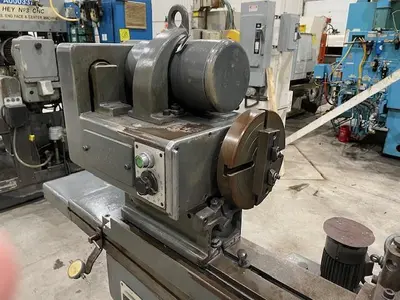

4" Risers for Workhead and Wheelhead for Increased Swing for ID Grinding, 18" Swing with Risers Installed
Table mounted dresser
Faceplate, 10” dia.
Floorspace Requirement: FB X RL 88” X 104"
Height: 60”
Est. weight: 6,000#
Capacity: 18” X 24”
Distance between centers: 24”
Swing over table: 10” without Risers
Max. table travel: 35”
Table size: 5 ½” X 45 1/2”
Table swivels: +/- 11 degrees
Table speeds from 0 to 240 IPM
Workhead speeds from 10 to 400 RPM
Workhead swivels: 90 degrees
Grinding wheel size: 16” X 2” W X 5” Hole Grinding wheel speeds: 1500, 1700, 2200 RPM
