Equipped With

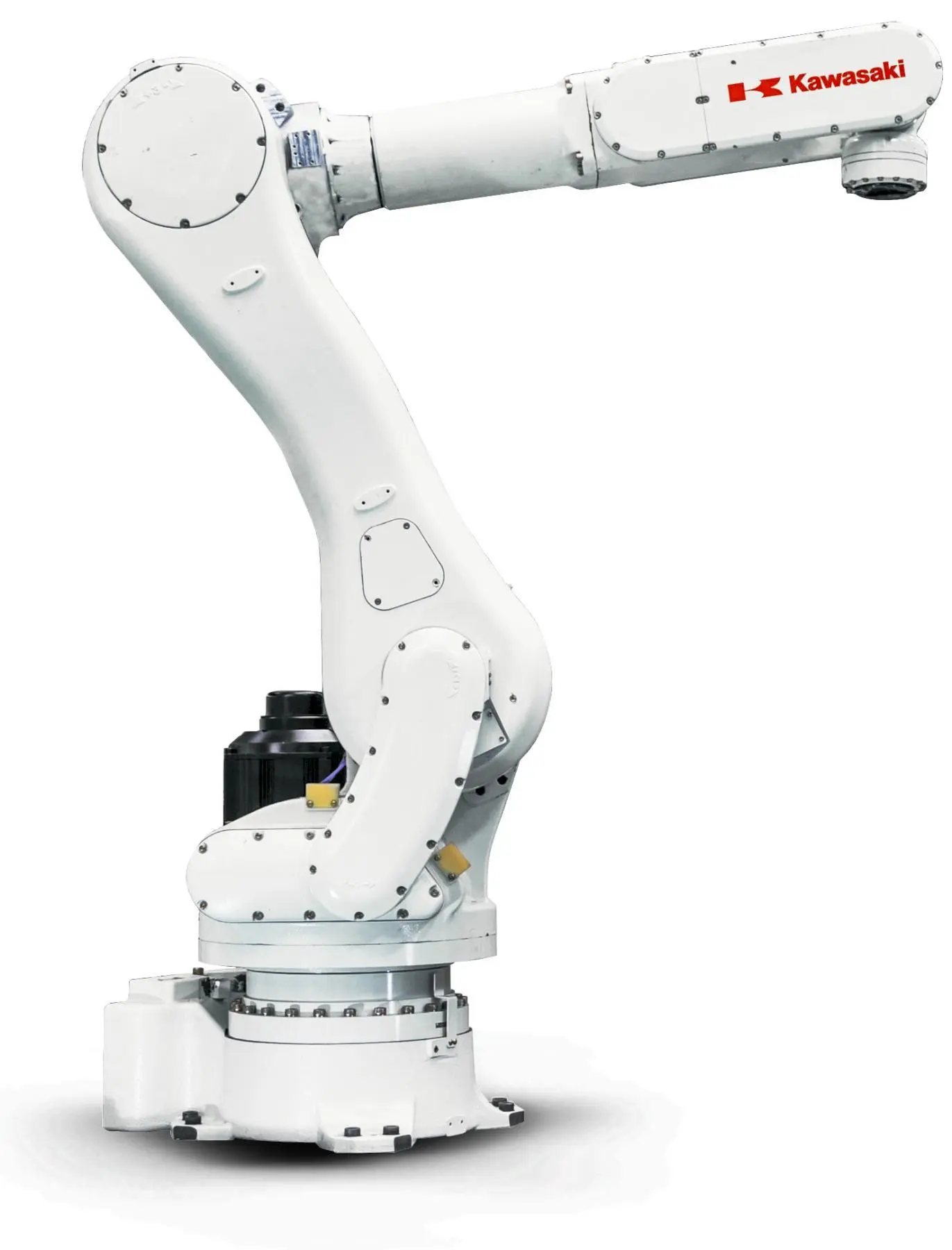

NEW KAWASAKI RD080NEE03 5-AXIS PICK & PLACE ROBOT AND CONTROLLER
Robot & Controller
Number of Axes 5
Payload Capacity 80 Kg
Horizontal Reach 82.67" (2100 mm)
Positional Repeatability +/0.06 mm
Internal Pneumatic Piping -(Ø8 mm x 2 lines)
Built-in Harness: Sensor Harness 12 Inputs
Main Robot Harness 10m
Software ethernet IP
2BW 37pin - 32/32 IO
Main CPU Board with: 16GB Memory, Block Step (Basic) and AS
(Advanced) Language Software is Standard and Included
Multi-function Panel (Genll Teaclh Pendant) with Color Touch Screen
LCD Display with 10m Cable
IP67 rated robot arm
Power Requirement - 440-480 Volt +/-10%, 3-phase, 50/60Hz
Power Requirement - 440-480 Volt +/-10%, 3-phase, 50/60Hz
RS232C and USB Port
(14) Month Warranty (Parts and Labor) from Ship Date from KRI
Options
Cubic S Standard (Robot Safety Monitoring Unit) $2,655.00
Not Available With Continuous Spin Software Function
Provides Capabilities as a Motion Area Monitor
Joint Monitor, Speed Monitor, Stand-Still Monitor, Tool Orientation Monitor
Protective Stop, Emergency Stop with Safety Status Output
