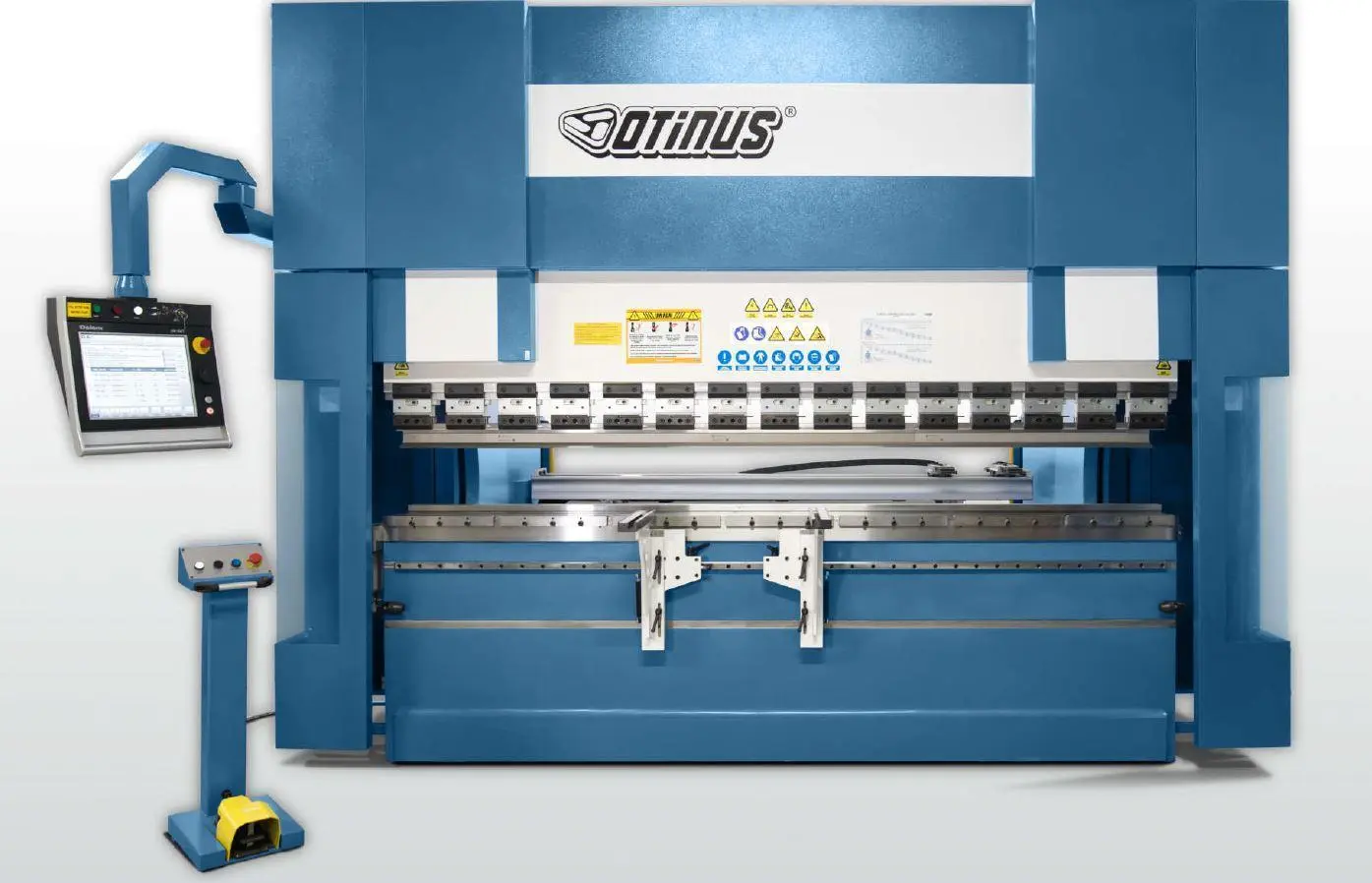

NEW 99 TON x 102" OTINUS PRO MODEL PBO-2609-PRO HYDRAULIC PRESS BRAKE

Equipped With
NEW 99 TON x 102" OTINUS PRO MODEL PBO-2609-PRO HYDRAULIC PRESS BRAKE
Tonnage                                                                                     99 Ton
Motor Output                                                                            7.5 kW
Oil Tank Volume                                                                         37 Gal
Speed:
     Approach                                                                             150 mm/s
     Working                                                                               10 mm/s
     Return                                                                                  130 mm/s
Approx. Weight                                                                         15,656 Lbs
Inside Frames                                                                            81"
Bending Length [A]                                                                   102"
Distance between side frames [B]                                             7'
Side Frame Width [C]                                                                62"
Bed Height [G]                                                                          35"
Daylight Opening [K]                                                                21"
Stroke [L]                                                                                   2"
Table Width [M]                                                                        16"
Throat Gap [N]                                                                         16"
Delem DA-69T controller
2D and 3D graphical touch programming module
3D visualization for simulation and processing
17" colour TFT screen of high resolution
Full Windows operating system
Compatibility with the Modusys Delem system (modular scalability and adaptability)
External USB port
Detailed user support in a multitasking environment
Bending using the sensors in parameter adjustment menu
Profile-T3D offline software
Price includes
2-day training including machine installation
1st day up to 8 hours - machine installation and learning how to use the controller.
2nd day up to 8 hours - independent work on the machine under the supervision of our technician - possibility of
programming specific parts that are made by the Client.
Telephone consultation with a specialist from 7.30 to 21.00 (Mon-Sat) – 8 hour time package to be used within 12 months
Terms of cooperation
24 month warranty.
The machine is brand new.
Warranty and after-sales warranty service
The Client is responsible for the machine during unloading and transport on-site.
