Equipped With

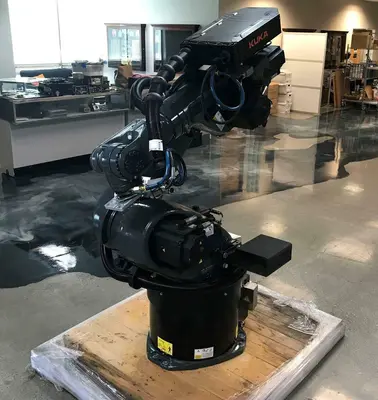

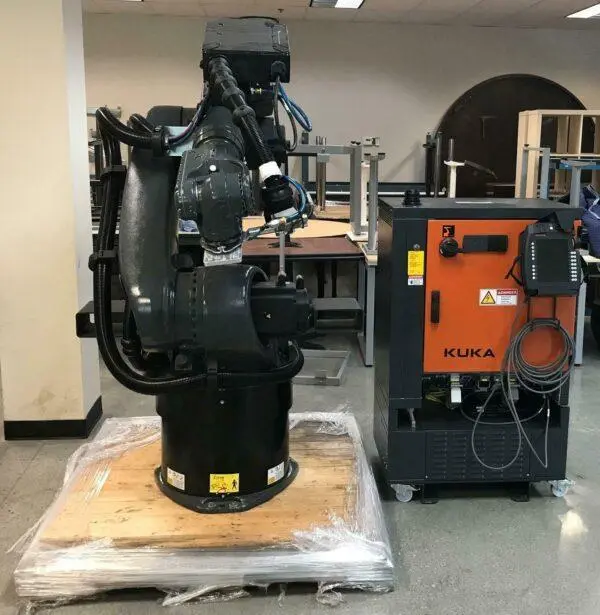

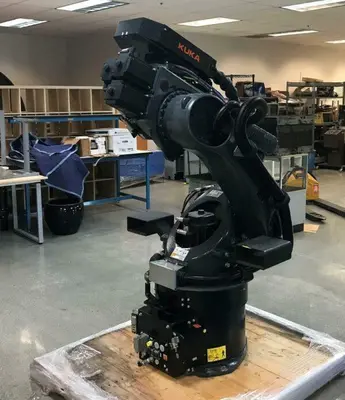

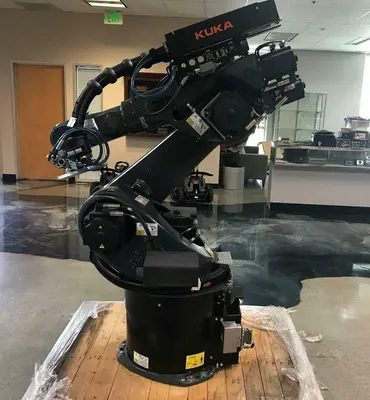

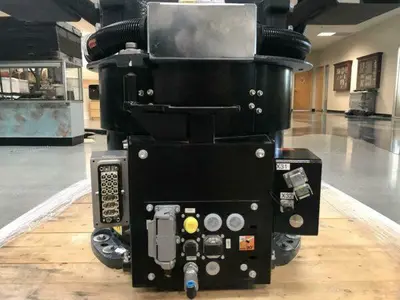

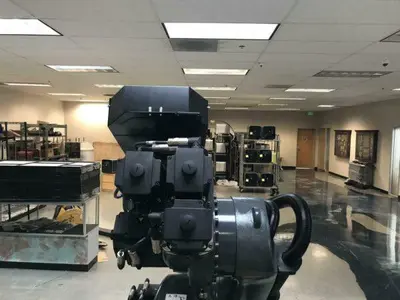

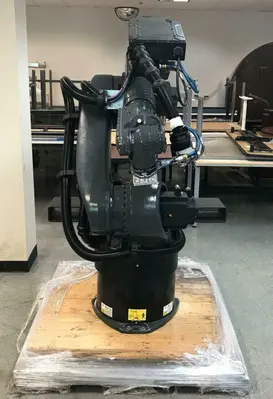

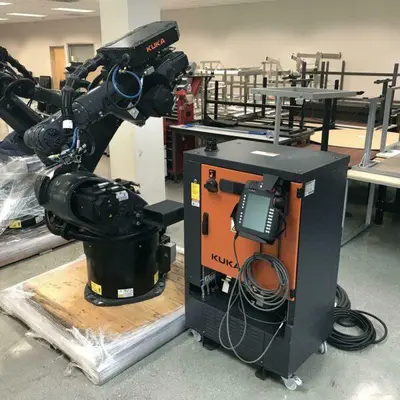

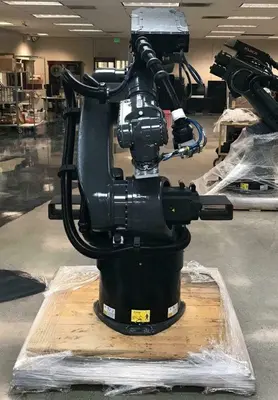

KUKA KR 60 -3 CNC ROBOT, KR C4 CONTROL UNIT
New: 2019, NEVER USED
Structure: Articulated
Axes: 6
Payload: 132.27 lbs.
Reach: 80.03 in
Repeatability: ± .0023in
Robot Mass: 1,466 lbs.
Robot Motion Speed
A1 - 128 °/s (2.23 rad/s)
A2 - 102 °/s (1.78 rad/s)
A3 - 128 °/s (2.23 rad/s)
A4 - 260 °/s (4.54 rad/s)
A5 - 245 °/s (4.28 rad/s)
A6 - 322 °/s (5.62 rad/s)
Robot Motion Range
A1 - ±185°
A2 - 135/35°
A3 - 120/158°
A4 - ±350°
A5 - ±119°
A6 - ±350°
Equipped With:

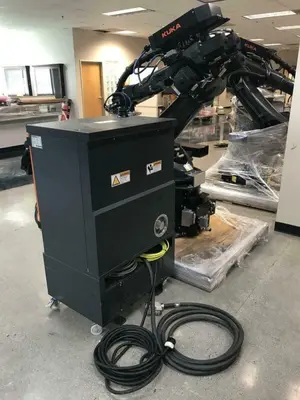

KR C4 Control Unit (630lbs)
Control Pendent
Safe Operation 3.4
Load Data Determination 7.0
Ethernet KRL 3.0
Diagnosis Safety 3.0
Work Visual 5.0
KSS 8.5
Ethernet/IP M/S 3.1
