Equipped With

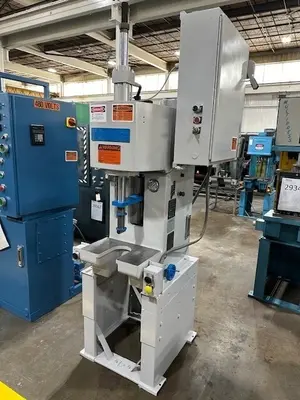

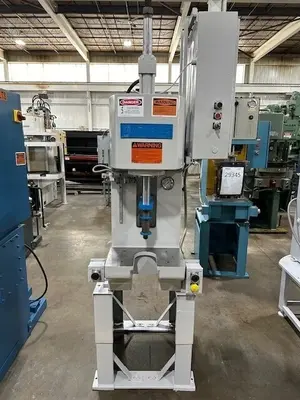

6 TON DENISON HYDRAULIC C FRAME PRESS
Table model on factory stand
Bed area: 17" L-R x 11" F-B with 5" U-slot
Stroke: 0 - 12" maximum
Daylight opening (total): 16" maximum
Throat depth: 6"
Ram diameter: 2.75"/1.5" @ 2450 PSI - 6 tons
Floor to top of bed: 34"
Power unit: Vickers hydraulic pump, driven by
5 HP 1725 RPM 230/460/3/60 motor
Controls: Pushbutton operation w/stroke & pressure control
Dual palm buttons
Inching control
Pressure gauge
Weight approx. 1500 lbs.
Overall dimensions approx. 42" L-R x 48" F-B x 90" H
