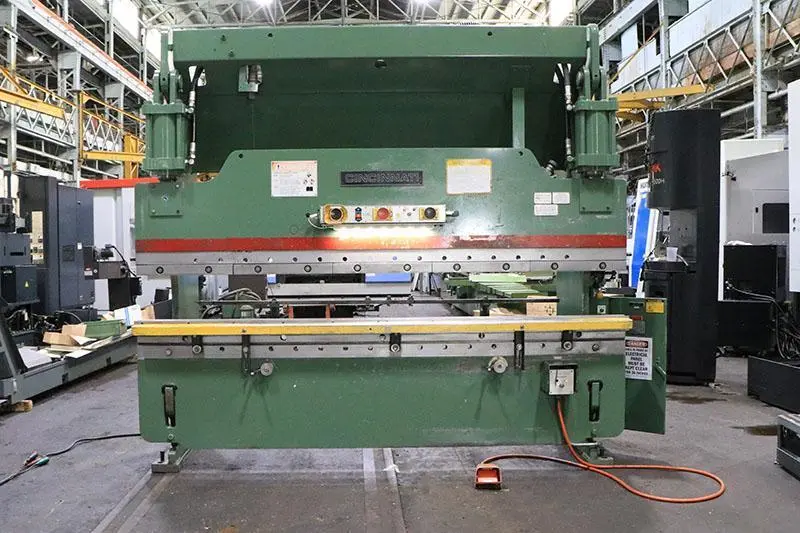

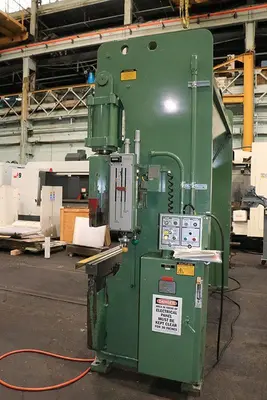

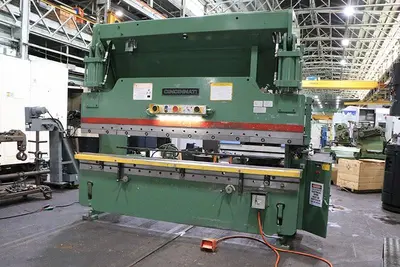

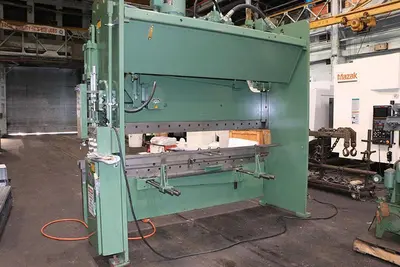

90 TON X 10' CINCINNATI MODEL 90CBX8 HYDRAULIC PRESS BRAKE
New 1991
SPECIFICATIONS:
Capacity ............................. 90 tons
Bending capacity ..................... 10' x 12 gauge
..................... 5' x 1/4"
Distance between housings ............ 8' 6"
Stroke ............................... 8"
Throat ............................... 7"
Overall die surface .................. 10"
Die space - open ..................... 15"
Closed ............................... 7"
Ram speed: High ...................... 150 ipm
Medium .................... 71 ipm
Low ....................... 21 ipm
Return .................... 136 ipm
Motor ................................ 15 HP
Approximate overall dimensions .. 60 D x 120 W x 116 H
Approximate weight ................... 14,000 lbs.
Machine is equipped with:

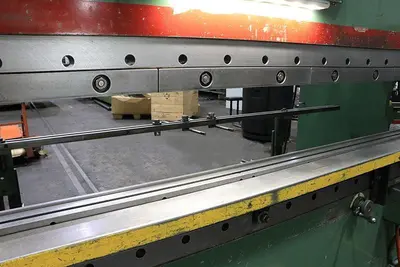

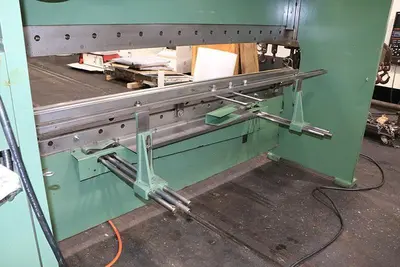

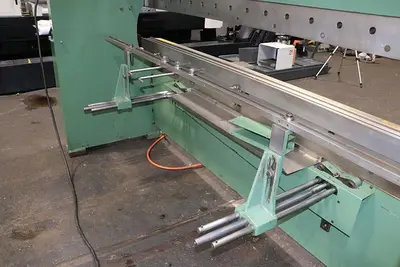

- Manually adjustable back stops
- Lower die rail

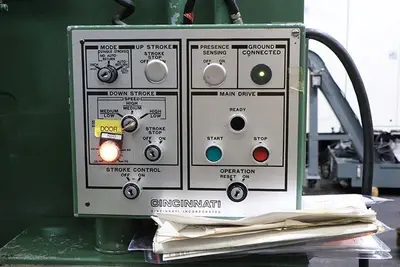

- 3-speed (low / medium / high)
- Adjustable tonnage control

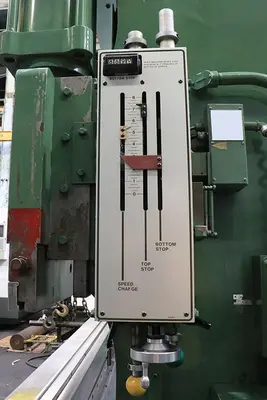

- Adjustable stroke and speed change w/ position indicator
- Single / Inch Modes

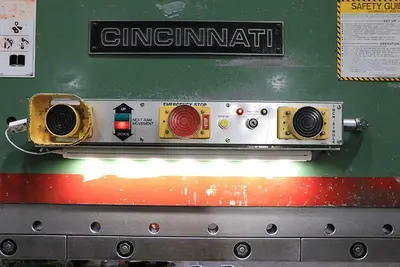

- Palm buttons mounted on machine face with E-Stop
- Remote Foot Pedal
- Manuals
