Equipped With

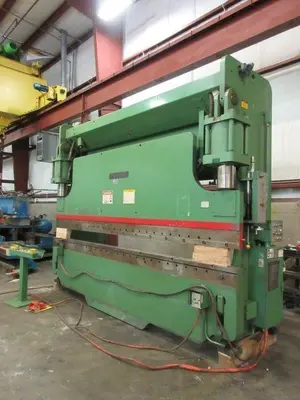

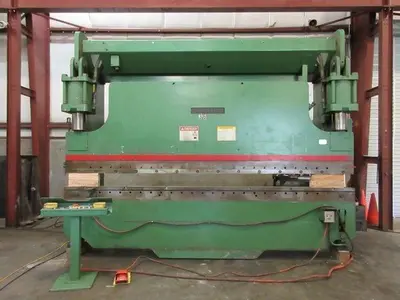

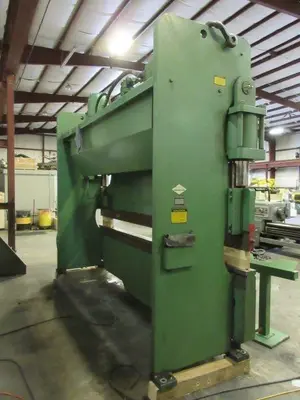

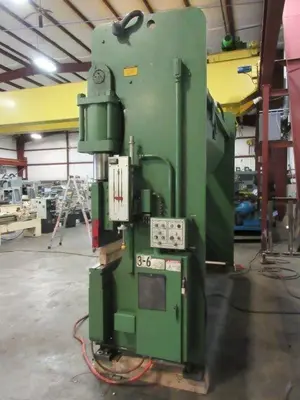

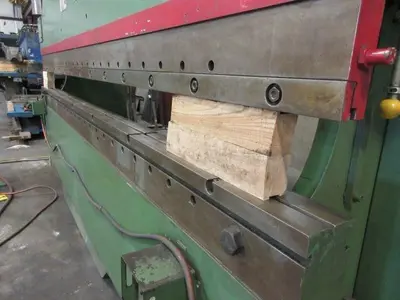

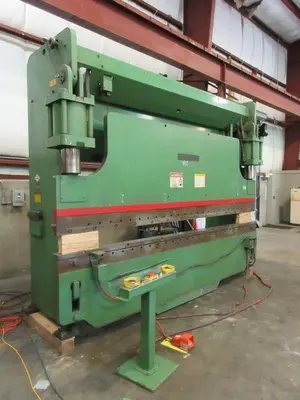

CINCINNATI 230CBX12 HYDRAULIC PRESS BRAKE
New: 1995
Specifications:
Capacity ......................... 230 Tons
Overall Bending Length ........... 14'
Distance Between Housings ......... 12'6"
Stroke ........................... 10"
Multiple Depth Stops ............. 4

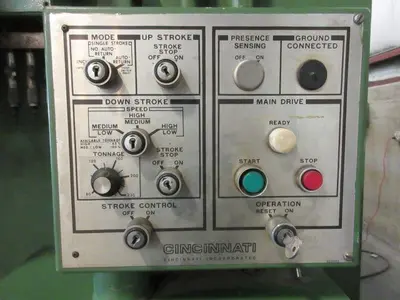

Palm Button Station .............. Yes
Footswitch ....................... Yes
Tonnage Control .................. Yes
Bed Plate ........................ 5" Below Grade
Motor ............................ 25 HP, 240/480V, 3PH (Currently Wired 480V)
Overall Size (Approx.) ........... 170" (L-R) x 48" (F-B) x 127" (H)
Weight (Approx.) ................. 32,000 lbs
PRICE – FOB TRUCK
