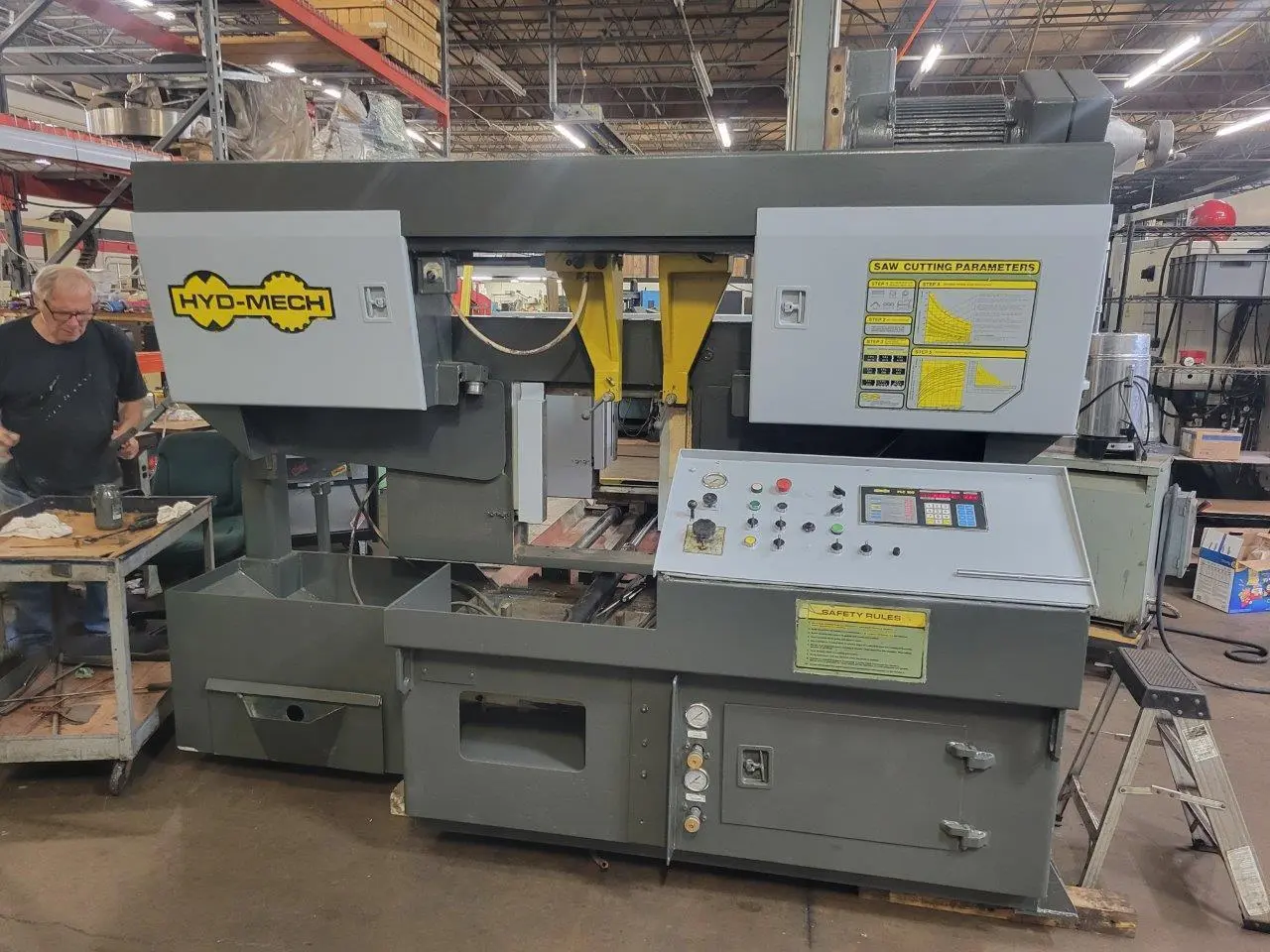

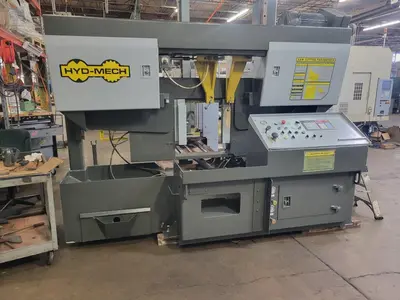

16" HYDMECH MODEL H-16A FULLY AUTOMATIC HORIZONTAL BAND SAW

Equipped With
16" HYDMECH MODEL H-16A FULLY AUTOMATIC HORIZONTAL BAND SAW
RECT-CAP (H) ------------------------------ 16"
   RECT-CAP (W) ------------------------------ 16"
   ROUNDS-CAP -------------------------------- 16"
   SQUARE-CAP -------------------------------- 16"
   POWER ------------------------------------- 10 HP
   TYPE (AUTO, MANUAL, SEMI) ----------------- AUTO
   BLADE WIDTH ------------------------------- 1.5"
   BLADE THICKNESS --------------------------- 0.05"
   BLADE LENGTH ------------------------------ 225"
   CONTROL ----------------------------------- CNC (PLC 100)
   APPROXIMATE MACHINE WEIGHT ---------------- 8,500 LBS
   APPROXIMATE MACHINE DIMENSIONS ------------ 118"(LR) X 96"(FB) X 90"(H)

   EQUIPPED WITH ---

       BUNDLING ATTACHMENT
       HYD-MECH PROGRAMMABLE PLC 100 CONTROL
       FULL STROKE HYDRAULIC VISES
       10 HP VARIABLE SPEED DRIVE
       COOLANT SYSTEM WITH WASH DOWN HOSE
       40" SHUTTLE STROKE
       CARBIDE BLADE GUIDES
       SOLID ONE PIECE WELDMENT
       VARIABLE VISE PRESSURE
       ALL AVAILABLE MANUALS
