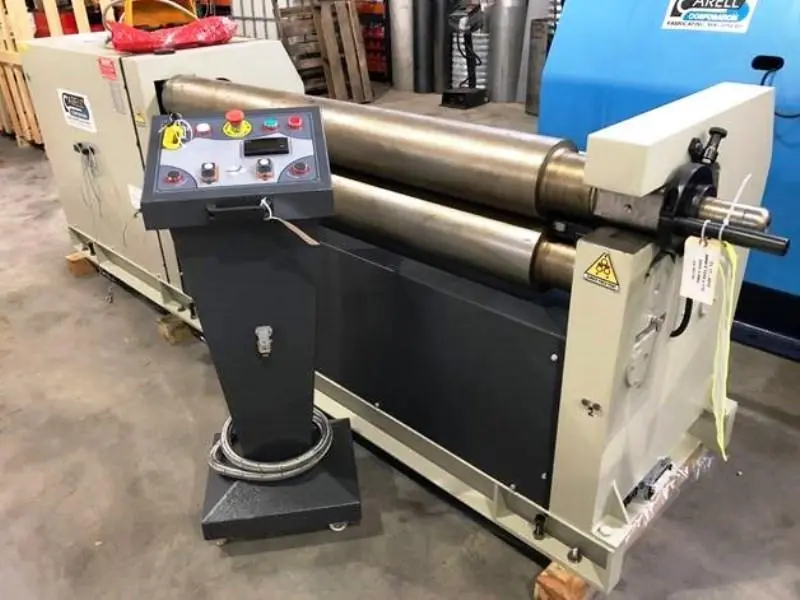

NEW CARELL 5' X 1/4" MRM-S 1550X170 3-ROLL INITIAL PINCH PLATE BENDING ROLL

Equipped With
NEW CARELL 5' X 1/4" MRM-S 1550X170 3-ROLL INITIAL PINCH PLATE BENDING ROLL
New 2025
Our MRM-S SERIES Model 1550x170 unit is a 5' x 1/4", 3 roll, single initial pinch plate bending machine with powered adjustment of lateral bending roll and powered rotation of upper and lower pinch rolls using high efficiency motor/reduction units. Machine designed to work with 1/4” x 5’ wide material.

TECHNICAL CHARACTERISTICS
Top & pinch roll OD
6.7" (170mm)
Lateral bending roll OD
6.7" (170mm)
Production velocity
12 fpm
Installed power
7 HP (5.5+1.5)
Wired for (specify on order)
220V-3-60Hz
Machine overall length
128"
Machine overall width
30"
Machine overall height
42"
Machine maximum. Weight
4,070 lbs approx.
STANDARD FEATURES
·       Both Upper roll and Central Pinch rolls driven by electric motor
and oil bath speed reducer through NiCrMo solid stock gears
·       Base in steel, electro-welded and stress relieved
·       Lateral roll, idle and moving on roller bearings
·       Pinch roll pinch pressure adjustable by precision worm gear movement
·       Front quick release top roll with rotation lock out safety switch
·       Lateral roll movement via electric motor and heavy duty worm gear
drive for precise positioning and maximum power
·       Lateral bending roll and pinch roll incline for cone working
·       Push Button Controls, low voltage 24VAC for safety
·       Multi point safety system including circumferential trip wire
·       Instruction manual
BENDING CAPACITIES


Useful Length
5’ (total roll 62”)
Bending Maximum
1/4”
Rolling Maximum
5/16” to large ID’s
Minimum ID with thin sheet equal to 1.4 x TR OD.
* Data w/ mild steels 36,000 max. yield at full  width
INCLUDING:
·     Cone rolling attachment…………………………………………………....................................................................................... INCLUDED
·     Induction hardened rolls, required for most all application……......................................................................................... INCLUDED
·     Polished Rolls (to remove heat treating surface residue)......... INCLUDED
·     LED Readout on bending roll............................................. INCLUDED
·     Powered Pinch Roll Adjustment Up/Down (adds to machine length)....................................................................................... INCLUDED
·     Add-on Foot Pedal for CW and CCW (stock machines only)....................................................................................... INCLUDED

OPTIONAL EQUIPMENT (Must be ordered with machine to be built, not in stock)
·     LED Readout on pinch roll..................................................... $1,600.00
·     Shaft extensions for section bending rolls............................ on request
·     Section Bending Dies........................................................... on request
