Equipped With

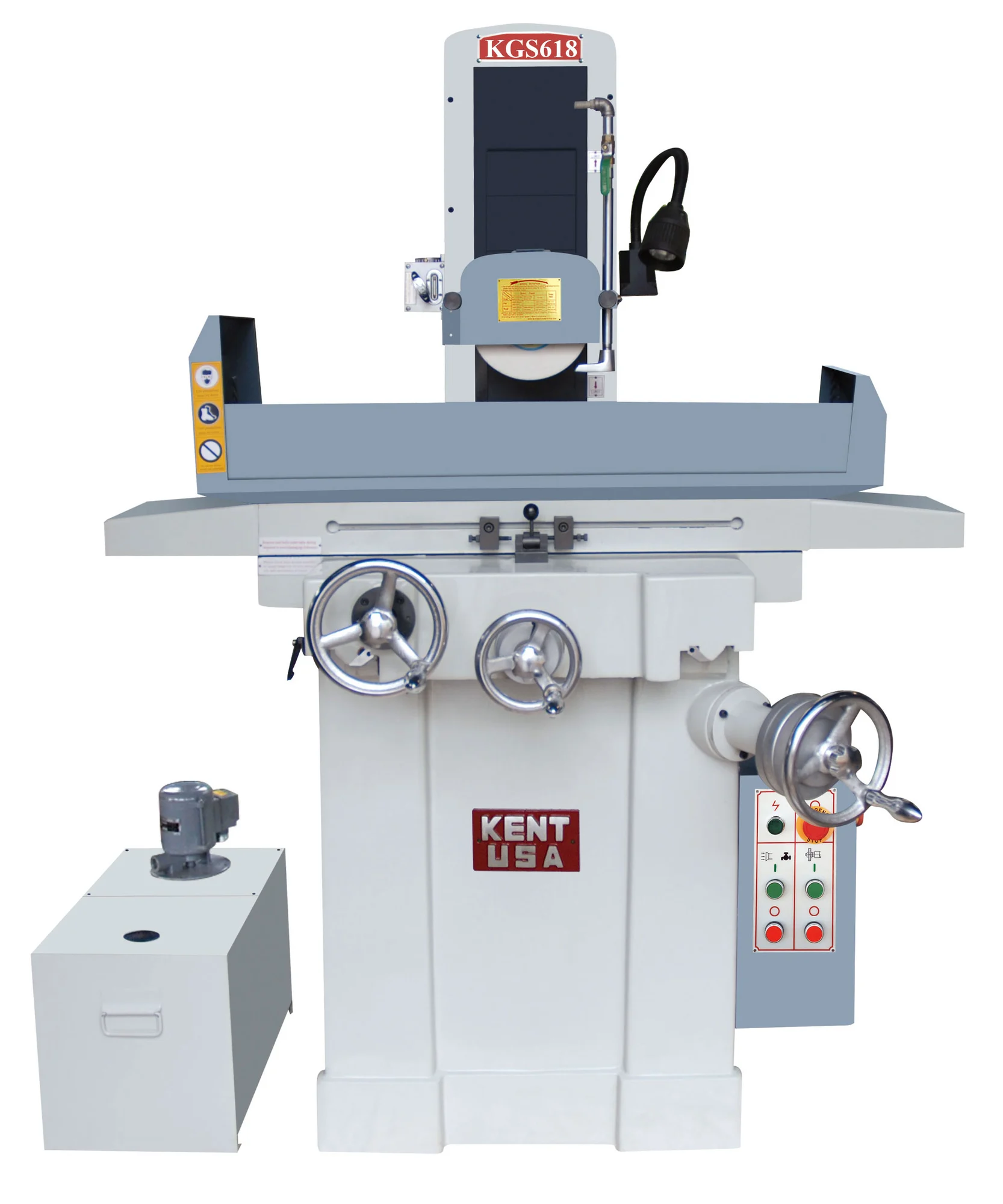

6" x 18" KENT USA KGS-618 MANUAL HAND FEED GRINDER - NEW
PRODUCT FEATURES
Roller ball on linear table ways for easy and smooth longitudinal movements
Ultra-high super rigid H-frame column with 21” spindle center to table for more clearance under the wheel than any other machine in its class
Flange-mount 3.35” diameter spindle cartridge design provides unmatched heavy grinding with superior side-grinding rigidity
Large metal hand wheels on all axis for long lasting dependability and easy operation
Over 2400 pound net weight, almost twice as massive as our competition
Centralized one-shot lubrication system provides lubrication to all points
Safety 24V control circuit power
STANDARD ACCESSORIES
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Leveling bolts & pads
Work light
Toolbox with tools
OPTIONAL ACCESSORIES
DRO system
Fine pole electric chuck & control
Permanent chuck
Dust-suction coolant system
Overhead parallel dresser
Extra wheel flange
Rustlick coolant (1 Gal, Mixes 1:30)
Working Capacity
Table Travel
Saddle Travel
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Spindle to Table
Net Weight
Gross Weight
KGS-618
6" x 18"
19.5"
6.75"
1 x 9/16”
2 HP
3470 RPM
8” x 1” x 1-1/4”
0.0002"
0.050"
21"
2400 LBS
2600 LBS
