Equipped With

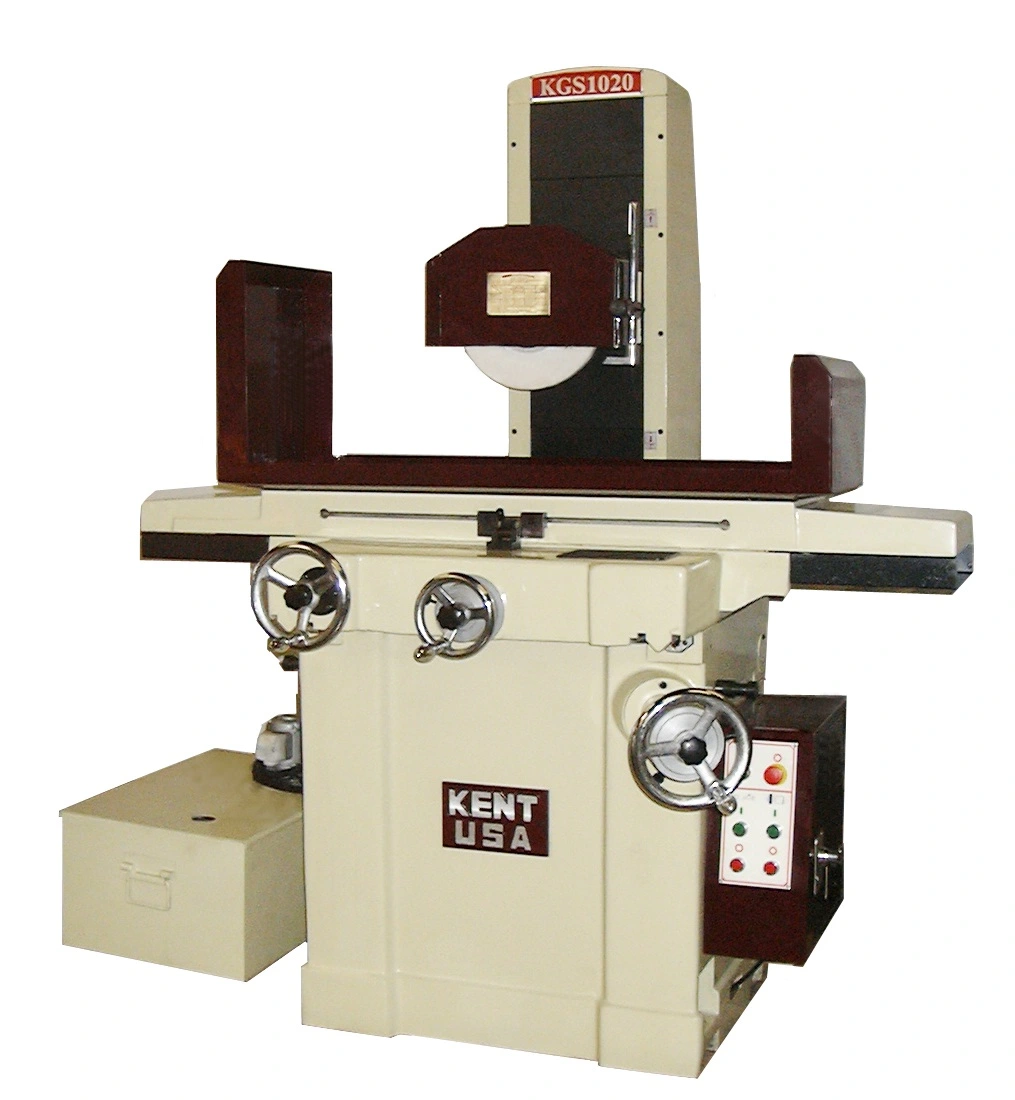

10" x 20" KENT USA KGS-1020 MANUAL HAND FEED GRINDER - NEW
PRODUCT FEATURES
10”x 20” working capacity
Roller ball on linear table ways for easy and smooth longitudinal movements
Precision hand scrapped turcite double V saddle ways for smooth and long lasting precision
High column design with 21” spindle center to table for extra clearance under the wheel
Safety Centralized one-shot lubrication system provides lubrication to all points
24V control circuit power
STANDARD ACCESSORIES
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Leveling bolts & pads
Halogen Work light
Toolbox with tools
OPTIONAL ACCESSORIES
Fine pole electric chuck & control
Electric chuck with control
Permanent chuck
Dust-suction coolant system
Flood coolant system
Overhead parallel dresser
Extra wheel flange
DRO system
Rustlick coolant
Working Capacity
Table Travel
Saddle Travel
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Spindle to Table
Net Weight
Gross Weight
KGS-1020
10" x 20"
24.5"
11"
1 x 9/16”
3 HP
3420 RPM
12” x 1” x 3”
0.0002"
0.050"
21"
3256 LBS
3800 LBS
