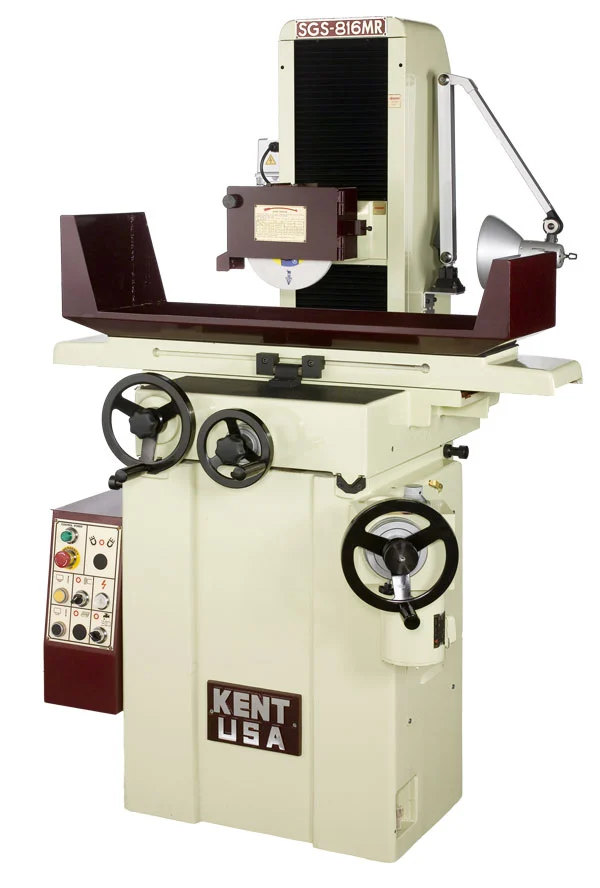

8" x 16" KENT USA SGS-816M MANUAL HAND FEED GRINDER - NEW
PRODUCT FEATURES
8”x16” working capacity
Downfeed dial graduated in 0.0001”
Roller ball on linear table ways for easy and smooth longitudinal movements
High column, 18” spindle center to table for extra clearance under the wheel
8” cross traverse for extra width and capacity, perfect for the mold shops
Centralized automatic lubrication system provides lubrication to all points
Safety 24V control circuit power
Micro-downfeed and rapid elevation (MR Model)
STANDARD ACCESSORIES
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Leveling bolts & pads
Halogen Work light
Toolbox with tools
OPTIONAL ACCESSORIES
Fine pole electric chuck & control
Permanent chuck
Dust-suction coolant system
Flood coolant system
Overhead parallel dresser
Extra wheel flange
DRO system
Working Capacity
Table Travel
Saddle Travel
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Spindle to Table
Net Weight
Gross Weight
SGS-816M/MR
8" x 16"
17"
8.25"
1 x 9/16”
2 HP
3500 RPM
8” x 1/2” x 1-1/4”
0.0001"
0.050"
18"
1430 LBS
1760 LBS
