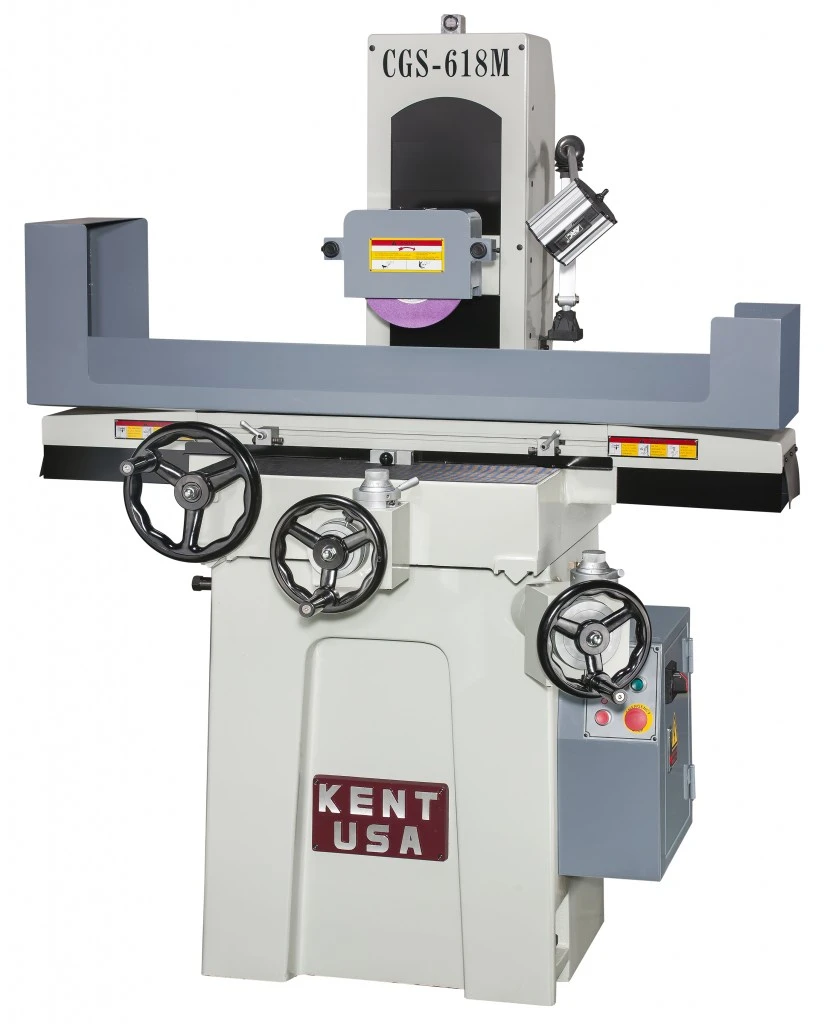

6" x 18" KENT USA CGS-618M MANUAL HAND FEED GRINDER - NEW
PRODUCT FEATURES
Roller ball on linear table ways for easy and smooth longitudinal movements
Hardened and ground Z axis column ways with 18” spindle center to table
Cartridge type spindle design for easy serviceability
Large hand wheels on all axis for easy operation
Over 1600 pound net weight
Centralized auto lubrication system provides lubrication to all points
Precision matched leadscrew and nut sets
Micro feed for Z (0.00005”) axis
Shown with optional micro feed for Y axis
STANDARD ACCESSORIES
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Leveling bolts & pads
Halogen Work light
Toolbox with tools
OPTIONAL ACCESSORIES
Fine pole electric chuck & control
Permanent magnetic chuck
Dust-suction coolant system
Flood coolant system
Overhead parallel dresser
Extra wheel flange
DRO system
Rotary magnetic chuck-ψ150mm
Working Capacity
Table Travel
Saddle Travel
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Spindle to Table
Net Weight
Gross Weight
CGS-618M
6" x 18"
19"
6.69"
1 x 9/16”
3 HP
3470 RPM
8” x 1/2” x 1-1/4”
0.0005"
0.050"
18"
1600 LBS
1800 LBS
