NEW KENT KGS-818AH

Equipped With

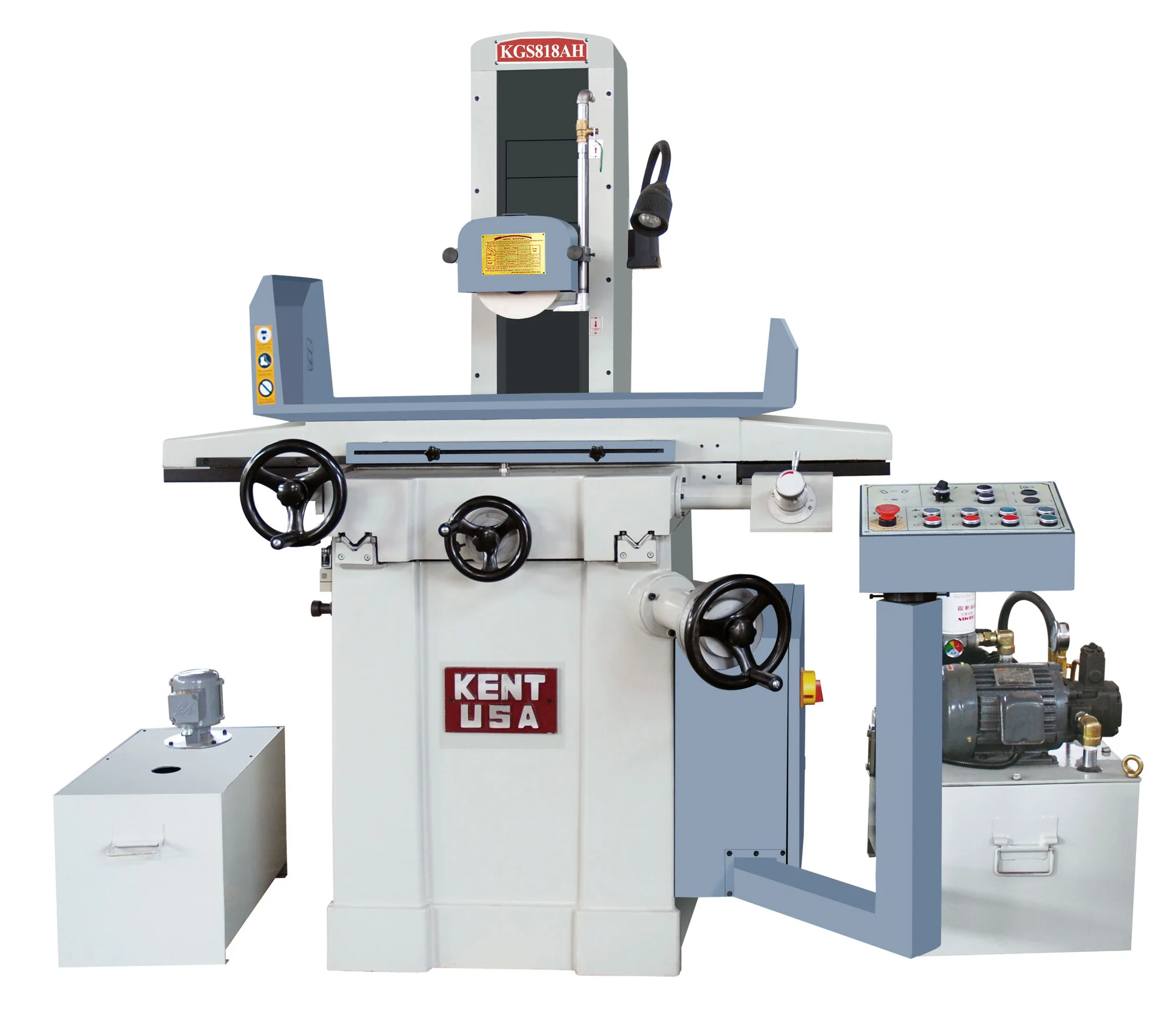

8" x 18" KENT USA KGS-818AH AUTOMATIC SURFACE GRINDER - NEW
PRODUCT FEATURES
8”x18” working capacity
2-axis automatic movement with hydraulic table movement and electronic auto-crossfeed
Precision hardened and ground double-V longitudinal ways with matched hand scrapped saddle ways for extra rigidity and lasting precision; Extra wide double-V cross ways
High column design with 21” spindle center to table for extra clearance under the wheel
Centralized automatic lubrication system provides lubrication to all points
Safety 24V control circuit power
STANDARD ACCESSORIES
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Leveling bolts & pads
Work light
Toolbox with tools
OPTIONAL ACCESSORIES
DRO system
Fine pole electric chuck & control
Permanent chuck
Dust-suction coolant system
Overhead parallel dresser
Extra wheel flange
Rustlick coolant (1 Gal, Mixes 1:30)
Table Travel
Saddle Travel
Working Capacity
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Auto Downfeed Increment
Spindle to Table
Net Weight
Gross Weight
KGS-818AH
20"
10"
8" x 18"
1 x 9/16”
3 HP
3420 RPM
8” x 1” x 1-1/4”
0.0002"
0.050"
N/A
21"
2490 LBS
3300 LBS
