Equipped With

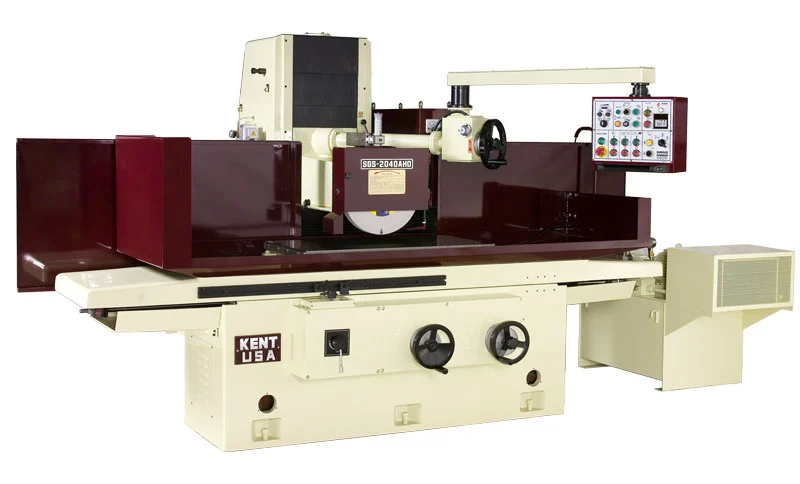

20" x 40" KENT USA SGS-2040 AHD AUTOMATIC SURFACE GRINDER - NEW
PRODUCT FEATURES
20” x 40” working capacity
3-axis automatic movement with incremental downfeed, electronic auto-crossfeed, and hydraulic powered table movement
Precision hand scrapped turcite V and flat table ways and double V column ways for smooth and long lasting precision
High column design with 23” spindle center to table for extra clearance under the wheel and rapid elevation motor for quick/easy positioning
Centralized automatic one-shot lubrication system provides lubrication to all points
Safety 24V control circuit power
STANDARD ACCESSORIES
Grinding Wheel
Wheel Flange
Wheel Balancing Base
Wheel Balancing Arbor
Diamond Table Dresser Base & Tip
Leveling Bolts & Pads
Work Light
Toolbox w/ Tools
OPTIONAL ACCESSORIES
Grinding Wheel
Wheel Flange
Wheel Balancing Base
Wheel Balancing Arbor
Diamond Table Dresser Base & Tip
Leveling Bolts & Pads
Work Light
Toolbox w/ Tools
Table Travel
Saddle Travel
Working Capacity
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Auto Downfeed Increment
Spindle to Table
Net Weight
Gross Weight
SGS-2040AHD
43"
20.25"
20" x 40"
3 x 9/16”
10 HP
1750 RPM
16” x 2” x 5”
0.0001"
0.020"
.0001" 10 Steps
23"
11,000 LBS
11,900 LBS
