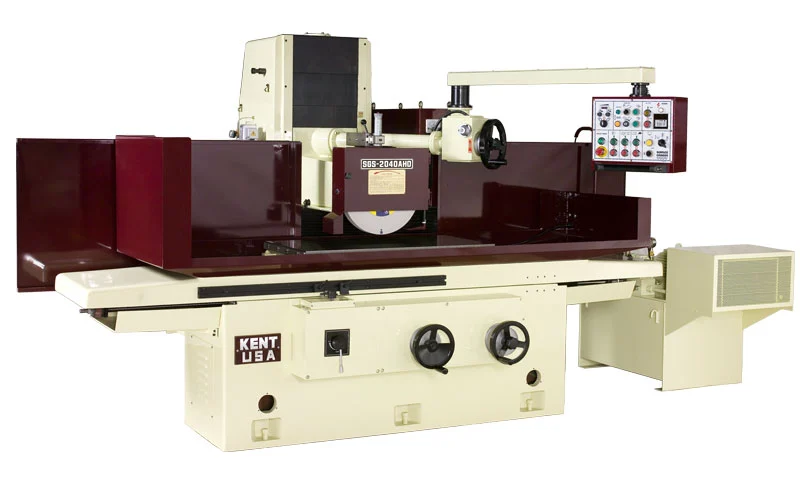

NEW KENT SGS-S2460AHD

Equipped With
24" x 60"  KENT USA SGS-S2460 AHD AUTOMATIC SURFACE GRINDER - NEW
PRODUCT FEATURES
24″ x 60″ working capacity
3 axis automatic movement
Precision turcite ways
Double-vee column cross traverse
NC Z-axis w/ servo motor and ball screw
Hydraulic table & electronic crossfeed
Automatic lubricator & rapid elevation
STANDARD ACCESSORIES
Grinding Wheel
Wheel Flange
Wheel Balancing Base
Wheel Balancing Arbor
Diamond Table Dresser Base & Tip
Leveling Bolts & Pads
Work Light
Toolbox w/ Tools
OPTIONAL ACCESSORIES
DRO System
Interloc w/ Control
Static Wheel Balancing Base
Extra Wheel Flange
Rustlick Coolant (1 Gal, Mixes 1:30)
Table Travel
Saddle Travel
Working Capacity
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Auto Downfeed Increment
Spindle to Table
Net Weight
Gross Weight
SGS-S2460AHD
65"
25.6"
23.5" x 59"
3 x 9/16”
10 HP
1750 RPM
16” x 2” x 5”
0.0001"
0.020"
.0001" to 0.0333" Per Pass
23.6"
13,200 LBS
14,100 LBS
