Equipped With

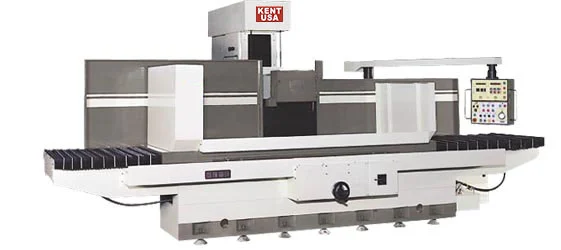

NEW KENT USA MODEL SGS-3488AHD AUTOMATIC SURFACE GRINDER
PRODUCT FEATURES
34″ x 88″ working capacity
3 axis automatic movement
Precision turcite ways
Double-vee column cross traverse
NC Z-axis w/ servo motor and ball screw
Hydraulic table & electronic crossfeed
Automatic lubricator & rapid elevation
STANDARD ACCESSORIES
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Magnetic separator & paper filter coolant
Hydraulic overhead parallel dresser
NC Z-axis controller
Toolbox with tools
OPTIONAL ACCESSORIES
DRO system
Fine pole electric chuck & control
Interloc w/ control
Extra wheel flange
Static wheel balancing
Rustlick coolant
Table Travel
Saddle Travel
Working Capacity
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Auto Downfeed Increment
Spindle to Table
Net Weight
Gross Weight
SGS-3488AHD
90.25"
35.4"
33.5" x 87.25"
3 x 9/16”
15 HP
1150 RPM
20” x 2” x 8”
0.0005"
0.050"
.0001" to 0.0333" Per Pass
37.7"
28,000 LBS
28,900 LBS
