NEW KENT JNG-4000

Equipped With

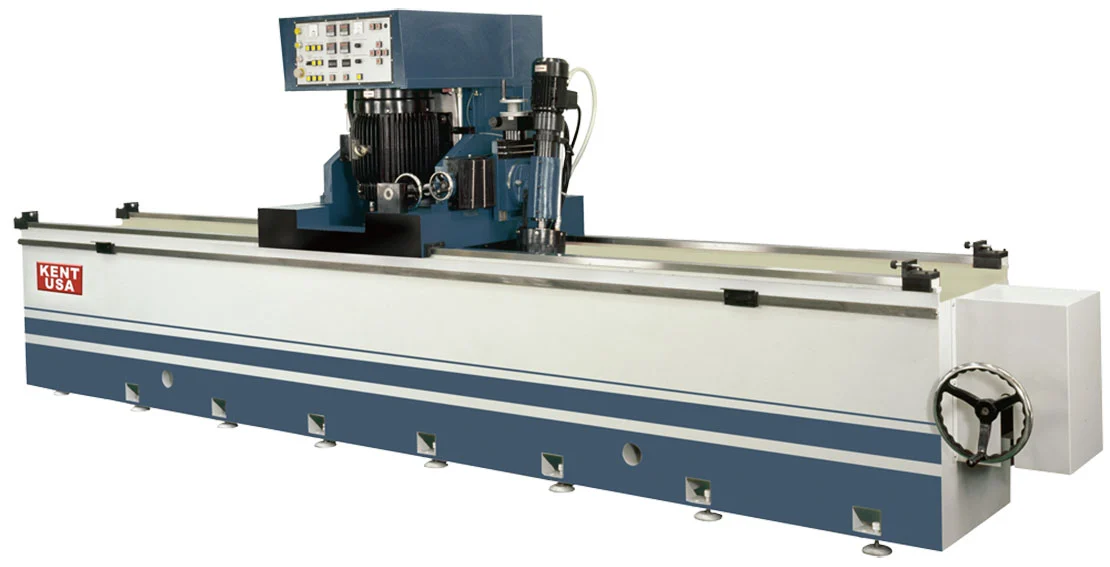

NEW KENT USA MODEL JNG-4000 KNIFE GRINDER
PRODUCT HIGHLIGHTS
Dual coarse and fine grinding wheels allow for grinding efficiency and fine finish
Minimum 0.005mm infeed
Manual and auto grinding cycles; # of passes and infeed amount can be easily set
Tempered stress released steel weldment base
Replaceable hardened (HRC 60°) steel rail ways
Built in auto lubrication
STANDARD ACCESSORIES
Grinding wheel
Wheel flange
Wheel balancing base
Wheel balancing arbor
NC Z-axis controller
Leveling bolts & pads
Diamond dresser base
Electromagnetic chuck control
Operation manual
Work light
Toolbox with tools
Hydraulic overhead parallel dresser
OPTIONAL ACCESSORIES
DRO system
Static wheel balancer
Extra wheel flange
Coolant
Magnetic Chuck Size
Magnetic Chuck Tilt Angle
Worktable (Grinding Wheel) Cross Feeding Speed
Min. Grinding Wheel Infeed
Max. Working Height
Coarse Grinding Wheel Speed
Coarse Wheel
Fine Wheel
Grinding Wheel Tilt Angle
Parallelism Of Ways To Chuck Surface
Coarse Wheel Motor
Fine Wheel Motor
Coolant Pump
Worktable Cross Feeding Motor
Packing Size (L x W x H)
Machine Net Weight
JNG-4000
157.5″ x 7.9″
±90°
3-16 m/min
0.0002″
4.3″
1720 RPM
Ø 12.0″ x 4.9″ x Ø 1.0″
Ø 5.9″ x 2.6″ x Ø 2.0″
0 – ±5°
±0.0004″(<0.1181″), ±0.0006″(0.1378″,0.1575″)
30 HP x 4P
1 HP x 4P
1 HP x 4P
1/3 HP x 6P
0.28″ x 0.06″ x 0.08″
14,815 LBS
