Equipped With

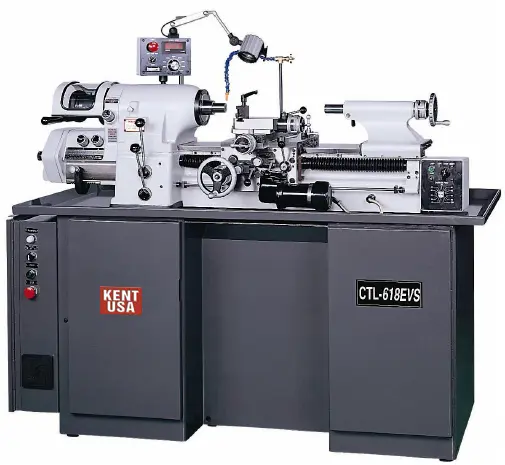

11" x 18" KENT USA CTL-618EVS PRECISION TOOLROOM LATHE - NEW
PRODUCT HIGHLIGHTS
Tool setting gauge
Collet fixture plates
Vertucak cut-off slide
Steady rest
Follow rest
Face plate
Taper turning attachment
6″ zero-set universal 3-jaw chuck with 4° back plate
6″ 4-jaw chuck with 4° back plate
DRO system
6 station automatic indexing turret
Indicator carriage stop
4 station turret
Radius turning attachmen
OPTIONAL ACCESSORIES
0-4000 infinitely variable spindle speeds using electronic vector drive
1-1/16” 5C thru-collet capacity
Induction hardened and ground alloy steel bedways for extra longevity
Full-bearing carriage
T-Slot compound
Inch/metric reading on dials
Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Thread – Standard (Whit-worth)
Thread – Metric Pitch
Longitudinal Feed
Cross Feed
Lead Screw Diameter
Threading Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Machine Dimension
Packing Dimension
Machine weight
Packing weight
CTL-618EVS
11"
6"
9"
6-3/4"
18"
6"
3"
Inf. Variable
0-4000 RPM
-
-
I - 5C (10°)” & O - 4°
36 (11-108) TPI
36 (0.275-2.7) mm
5/16" - 7" ipm
5/16" - 4" ipm
1"
8 TPI
3.75"
1.358"
MT#2
3 HP
1/4 HP
65" x 28" x 58"
85" x 36" x 68"
2300 LBS
2450 LBS
