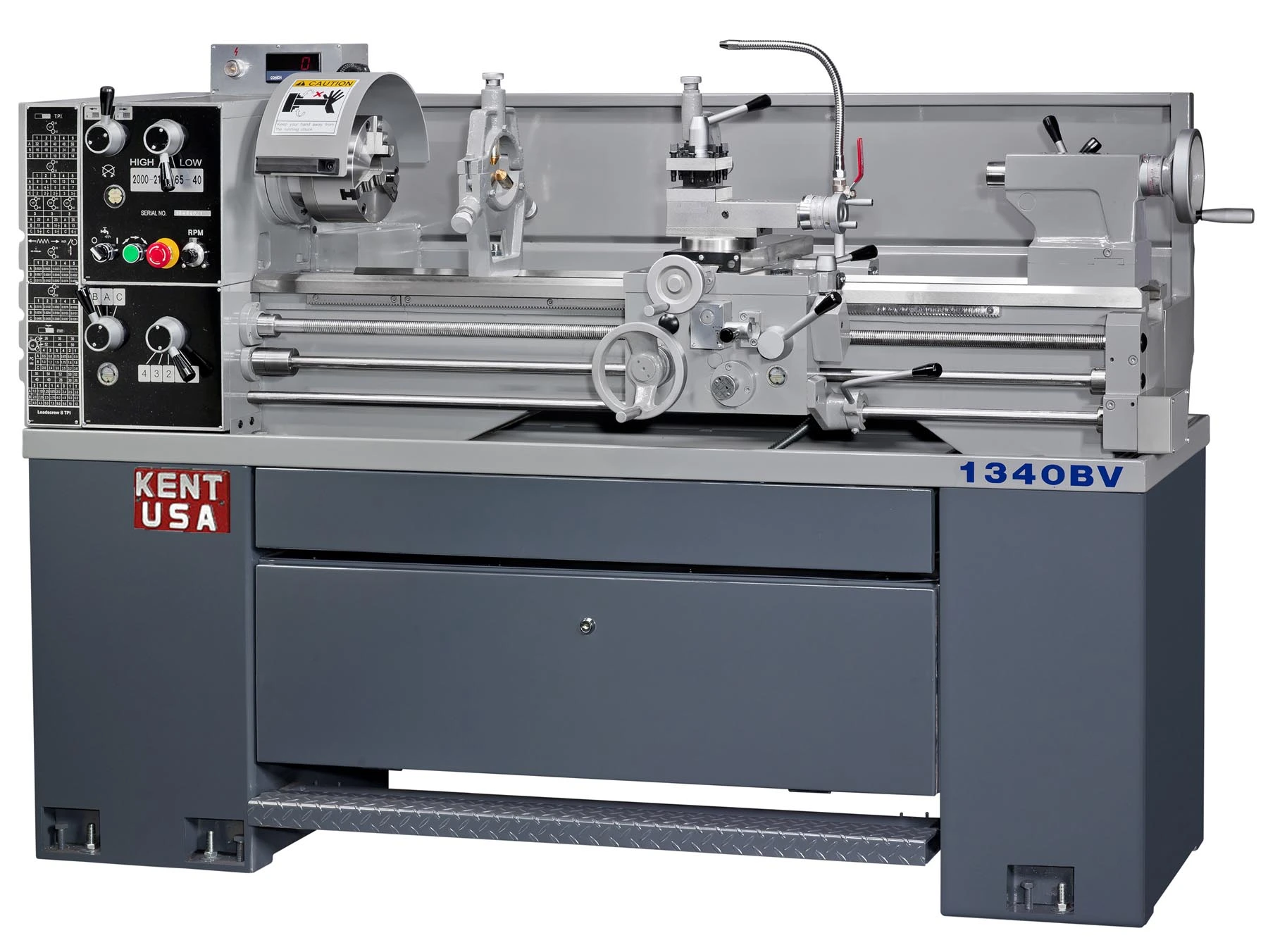

13" x 40" KENT USA SSM-1340BV PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
3 HP main spindle motor
Infinitely variable spindle speeds with digital RPM display in Hi/Low gear speed ranges
Capable of being run on single phase or 3 phase power
Jog button for easy gear changes
Hardened and ground gears and bedways
Cast iron machine bedways
Removable chip pan for easy clean up
Foot brake and T-Slot compound
Inch/metric ruler on tailstock quill
STANDARD ACCESSORIES
3-jaw chuck (7″)
4-jaw chuck (8″)
Steady rest
Follow rest
4-position tool post
Coolant system
Full-length splash guard
Worklight
Chuck cover
Thread chasing dial
Toolbox with standard tools
OPTIONAL ACCESSORIES
Digital Readout System
Royal spindle type live center
BTC 3-jaw chuck with back plate
Taper turning attachment
Rustlick coolant
Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Thread – Standard (Whit-worth)
Thread – Metric Pitch
Longitudinal Feed
Cross Feed
Lead Screw Diameter
Threading Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Machine Dimension
Packing Dimension
Machine weight
Packing weight
SSM-1340BV
13"
8.25"
18.8"
7.5"
40"
6.75"
3.5"
2
40-365 & 218-2000 RPM
1-9/16
ASA D1-4 Camlock
MT#5
34 (2-56) TPI
33 (0.5-12) mm
.0016" - .046"
.0016" - .046"
7/8"
8 TPI
4"
1-9/16"
MT#3
3 HP
1/8 HP
74" x 28" x 54"
77" x 30" x 60"
1320 LBS
1584 LBS
