NEW KENT TRL-1340/1340V

Equipped With

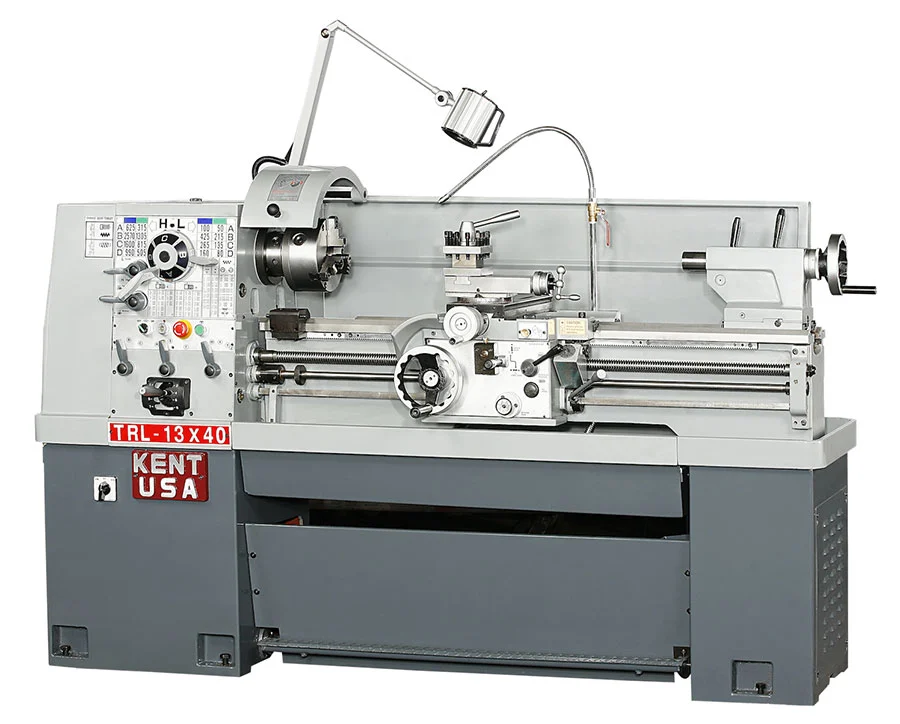

13" x 40" KENT USA TRL-1340/1340V MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
Heaviest duty 13” lathe in its class
5 HP main spindle motor
16 speeds, geared headstock (TRL-1340) (50 – 2570 RPM)
Infinitely variable speed in Hi/Low geared speed ranges (TRL-1340V) (100-500-3000 RPM)
Jog button for easy gear changes
Hardened and ground gears and bedways
Cast iron machine bedways and base
Removable chip pan for easy clean up
Foot brake and T-Slot compound
Inch/metric reading on dials
Inch/metric ruler on tailstock quill
ISO 9001 certified manufacturer
STANDARD ACCESSORIES
3-jaw chuck (7″)
Steady rest
Follow rest
4-position tool post
Coolant system
Full-length splash guard
Worklight
Chuck cover
Thread chasing dial
Toolbox with standard tools
OPTIONAL ACCESSORIES
4-jaw chuck (8″)
Digital Readout System
Royal spindle type live center
BTC 3-jaw chuck with back plate
Taper turning attachment
Rustlick coolant

Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Thread – Standard (Whit-worth)
Thread – Metric Pitch
Longitudinal Feed
Cross Feed
Lead Screw Diameter
Threading Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Machine Dimension
Packing Dimension
Machine weight
Packing weight
TRL-1340
13-3/8"
8.25"
20"
9"
40"
7"
4"
16
50-2570 RPM
1-9/16"
ASA D1-4 Camlock
MT#5
45 (2-72) TPI
39 (0.2-14) mm
.002" - .067"
.001" - .0375"
1-1/8"
4 TPI
4"
2"
MT#3
5 HP
1/8 HP
81.5" x 32" x 56"
90" x 37" x 60"
2000 LBS
2440 LBS
