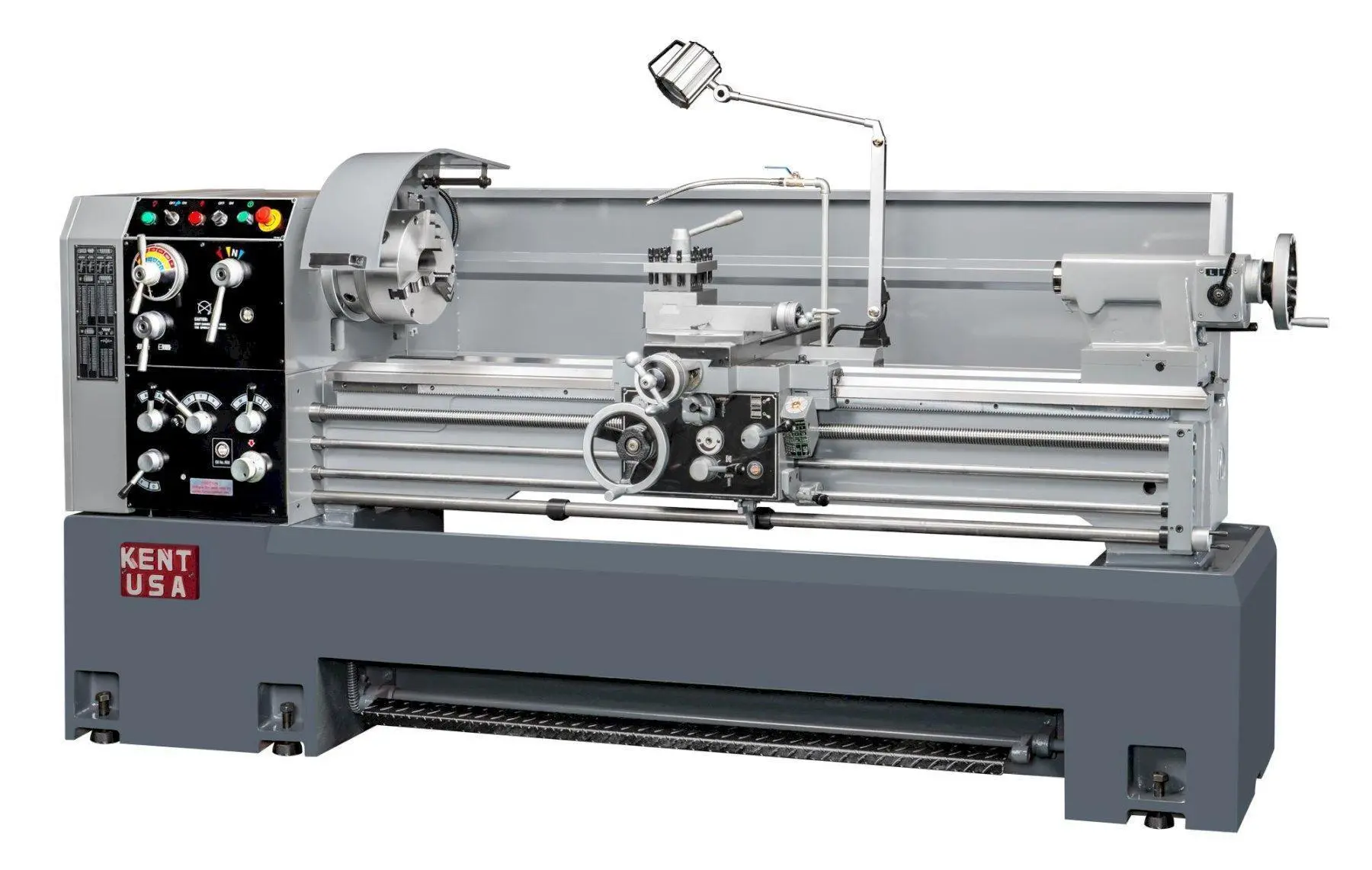

22" x 86.5" KENT USA CS-2280 MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
10 HP Spindle Motor, 12-Speeds
Precision Spindle with 3 Point Support
3.2” Spindle Through Hole
Hardened and ground spindle gears and shafts; hardened and ground bedways
Solid Full Length Casting Base; Full-length Safety Foot Brake
Spindle Jog Button Control
One-shot/Auto Lubrication for Apron, Carriage, and Bed Ways
Multi-position Adjustable Feed Position Stops
Dual Inch/Metric Calibrated Tailstock Quill
STANDARD ACCESSORIES
3-jaw chuck
Steady rest
Follow rest
4-position tool post
Coolant system
OPTIONAL ACCESSORIES
DRO System 80”(2-axis, x=0.0001”/z=0.0005” res)
Aloris CA #4-SET (Tool Post and 6 holders)
Aloris DA #5-SET (Tool Post and 6 holders)
Royal spindle type live center (M.T. #5)
BTC 3-jaw chuck w/back plate (Zero-set, 12” D1-8)
4-jaw independent Chuck (12” or 16″ D1-8)
Face plate (20” D1-8)
Taper turning attachment
Micrometer carriage stop
Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Thread – Standard (Whit-worth)
Thread – Metric Pitch
Longitudinal Feed
Cross Feed
Lead Screw Diameter
Threading Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Machine Dimension
Packing Dimension
Machine weight
Packing weight
CS-2280
22"
14.2"
30.7"
13.2"
86.5"
10.2"
5"
12
25-1500 RPM
3.2"
D1-8
MT#5
45 (2-72) TPI
39 (0.2-14) mm
.0014" - .04"
.00075" - .02"
NA
NA
7"
2.95"
MT#5
10 HP
1/8 HP
NA
138" x 39" x 61"
NA
NA
