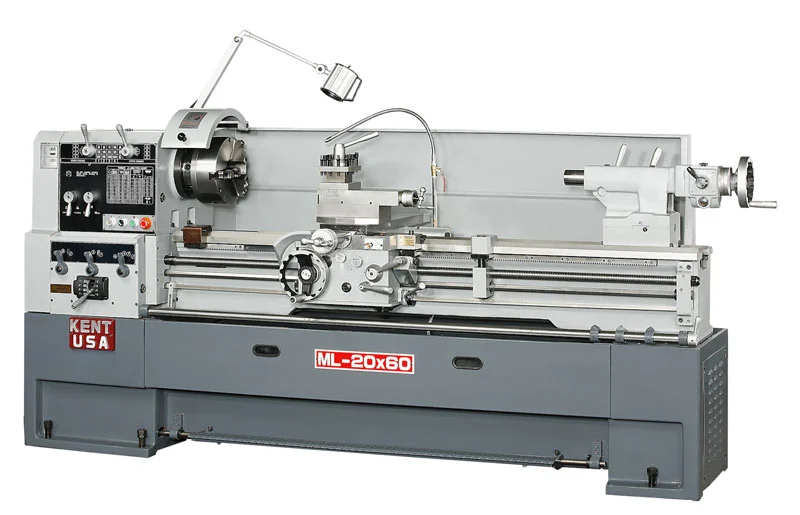

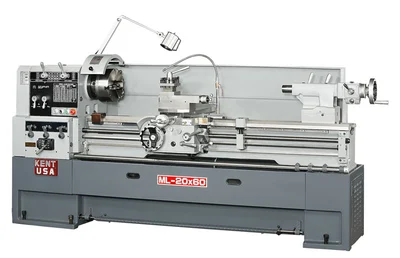

20" x 44" KENT USA ML-2060T MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
7.5 HP Spindle Motor, 12-Speeds
3.125” Spindle Through Hole
Solid Full Length Casting Base with Front Loading Chip Tray for Easier Cleaning
Adjustable Over-load Feed Clutches
Quick Reversal Feed from Apron
Full-length Safety Foot Brake
Spindle Jog Button Control
One-shot Lubrication for Apron, Carriage, and Bed Ways
Multi-position Adjustable Feed Position Stops
Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
Dual Inch/Metric Dials with Quick-change Sleeve
STANDARD ACCESSORIES
3-jaw chuck
Steady rest
Follow rest
4-position tool post
Coolant system
Full-length splash guard
Worklight
Chuck cover
Thread chasing dial
Toolbox with standard tools
OPTIONAL ACCESSORIES
4-jaw chuck
Digital Readout System
Royal spindle type live center
BTC 3-jaw chuck with back plate (Zero-set, ^” or 8″ D1-4)
Taper turning attachment
Rustlick coolant
Micro carriage stop
Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Thread – Standard (Whit-worth)
Thread – Metric Pitch
Longitudinal Feed
Cross Feed
Lead Screw Diameter
Threading Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Machine Dimension
Packing Dimension
Machine weight
Packing weight
ML-2060T
20"
14"
27.5"
12"
57"
12"
4.75"
12
36-1800 RPM
3.125"
D1-6
MT#7 - MT#4
45 (2-72) TPI
39 (0.2-14) mm
.0015" - .04"
.00075" - .02"
NA
NA
5"
2.3"
MT#4
7.5 HP
1/8 HP
NA
108" x 42" x 66"
4510 LBS
5400 LBS
