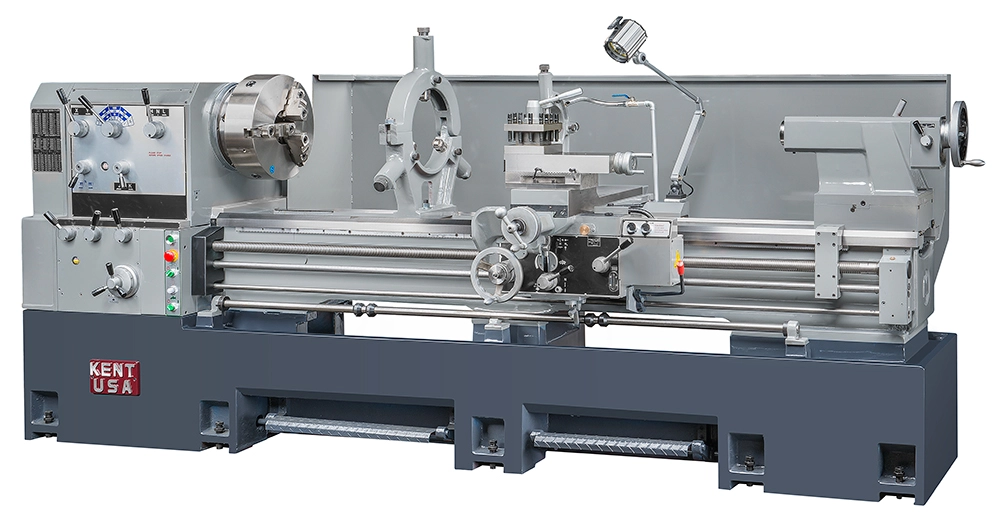

26"/35" x 80" KENT USA HW-26 SERIES MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
15 HP spindle motor, 12-speeds
4.5″ (115 mm) spindle through hole
Solid one piece full length casting base and bedways for maximum rigidity
Spindle jog button control
One-shot lubrication for apron, multi-position adjustable feed position stops
Dual inch/metric calibrated tailstock
Dual inch/metric dials
STANDARD ACCESSORIES
3-jaw chuck (15″)
Steady rest
Follow rest
Thread chasing dial
4-position tool post
4-position carriage stop
Coolant system with full-length splash guard
OPTIONAL ACCESSORIES
Digital Readout System
Aloris DA #5-SET (Tool post and 6 holders)
Royal spindle type live center
BTC 3-jaw chuck with back plate (Zero-set, 15″ D1-11)
Adaptor plate and rear 12″ 3 jaw chuck for back of spindle
Face plate (20″ D1-11)
Taper turning attachment
Micrometer carriage stop
Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Thread – Standard (Whit-worth)
Thread – Metric Pitch
Longitudinal Feed
Cross Feed
Lead Screw Diameter
Threading Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Machine Dimension
Packing Dimension
Machine weight
Packing weight
HW-26 Series
26"
17.3"
35"
15.75"
80" (Opt 120" / 160")
14.75"
8"
12
10-1000 RPM
4.5"
D1-11
MT#7
44 (2-56) TPI
39 (0.2-14) mm
0.002" - 0.032" IPM
.001 - .0094"
NA
NA
6.5"
3.3"
MT#5
15 HP
1/8 HP
NA
137" / 186" / 219" x 41" x 52"
NA
NA
