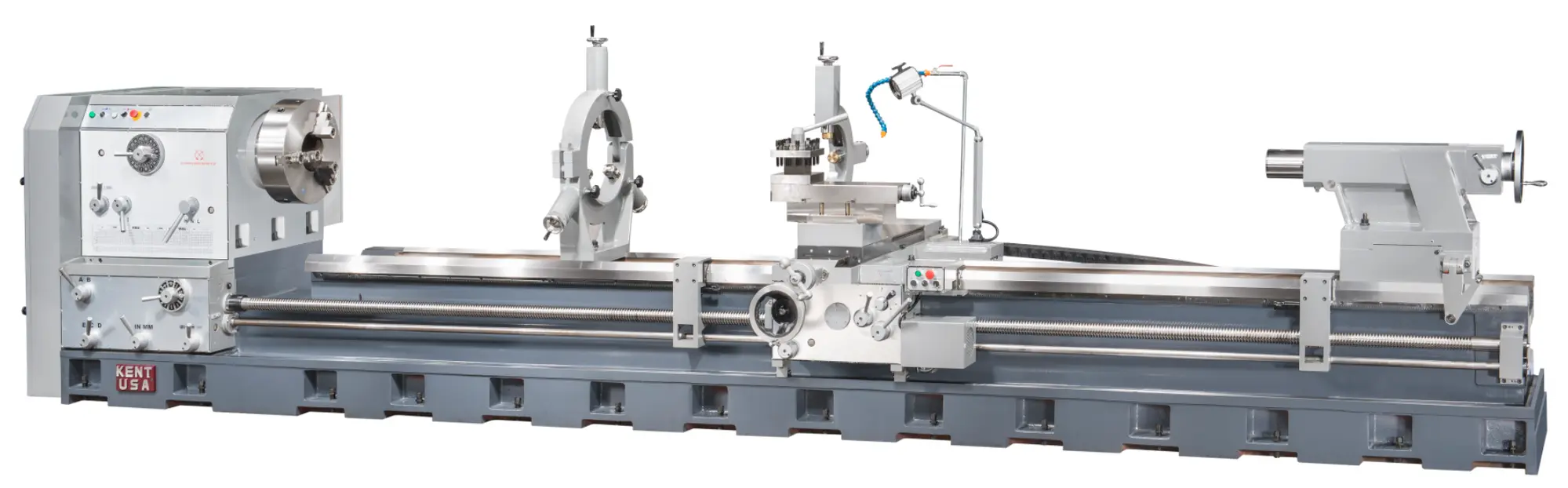

38" x 120" KENT USA HL-37 SERIES MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
20 HP Spindle Motor, 16-Speeds
5.98” Spindle Through Hole
Extra Heavy Ribbed One Piece Bedways and Base
Spindle Jog Button Control
One-shot Lubrication for Apron, Carriage, and Bed Ways
Two Speed Tailstock
Magnetic Clutch Brake
4 Way Rapid Feed
STANDARD ACCESSORIES
Steady rest
Work light
Thread chasing dial
Follow rest
4-position tool post
Coolant system
OPTIONAL ACCESSORIES
Digital Readout System
Chuck cover
3-jaw chuck (20″)
4-jaw independent chuck (32″ or 40″)
9″ / 12″ spindle bore
Face plate
Royal spindle type live center
Taper turning attachment
Rear of spindle chuck adapter plate for 32″ 4-jaw chuck
BTC 3-jaw chuck with back plate
Micrometer carriage stop
Rustlick coolant
Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Thread – Standard (Whit-worth)
Thread – Metric Pitch
Longitudinal Feed
Cross Feed
Lead Screw Diameter
Threading Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Machine Dimension
Packing Dimension
Machine weight
Packing weight
HL-37 Series
37.8"
14.2"
54-3/8"
24"
120" (Opt 80" / 160" / 200" / 240" / 280" / 320")
23.6"
13.78"
16
4-420 RPM
5.98"
ASA A2-11
NA
1/4 - 30 TPI
1-120 mm
0.00236" - 0.0277" IPM
.00118 - .00138"
NA
NA
12"
4.5"
MT#6
20 HP
1/8 HP
NA
200" x 61" x 66"
NA
NA
