NEW KENT HR-35

Equipped With

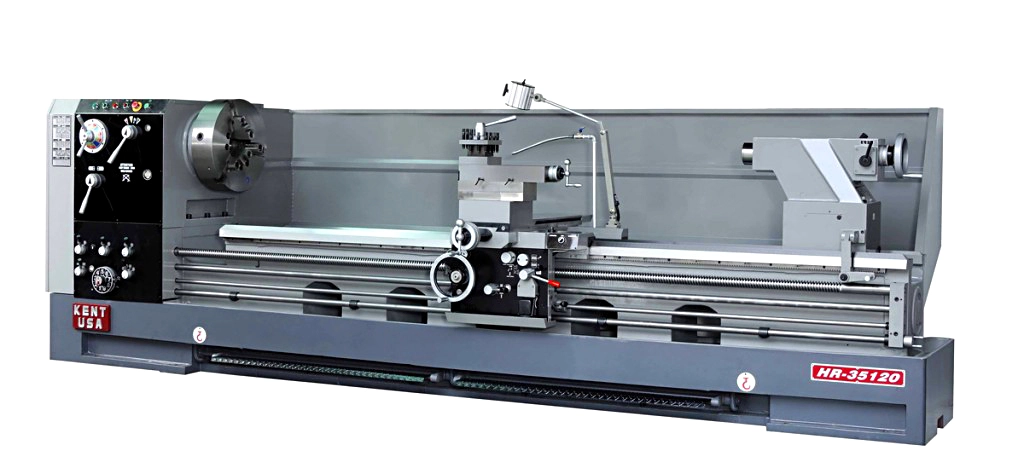

31" x 120" KENT USA HR-35 SERIES MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
20 HP Spindle Motor, 12-Speeds
4.1” (6.1” Opt)Spindle Through Hole
Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity
Spindle Jog Button Control
One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops
Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
Dual Inch/Metric Dials (Optional)
STANDARD ACCESSORIES
Halogen work light
3-position carriage stop
4-position tool post
Thread chasing dial
Steady rest
Coolant system
OPTIONAL ACCESSORIES
Digital Readout System
Chuck cover
4-jaw independent chuck
Face plate
Royal spindle type live center
Taper turning attachment
BTC 3-jaw chuck with back plate
Micrometer carriage stop
Rustlick coolant


Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Thread – Standard (Whit-worth)
Thread – Metric Pitch
Longitudinal Feed
Cross Feed
Lead Screw Diameter
Threading Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Machine Dimension
Packing Dimension
Machine weight
Packing weight
HR-35 Series
34.6"
25.2"
46"
19"
120" (Opt 80" / 160" / 200")
17.32"
9.4"
12
14-1000 RPM
4.1" (Opt 6.1")
D1-11 or A1-11
MT#7 - MT#4
45 (2-72) TPI
39 (0.2-14) mm
0.002" - 0.0276" IPM
.00118 - .00138"
NA
NA
12"
4.133"
MT#6
20 HP
1/8 HP
NA
198" x 69" x 73"
NA
NA
