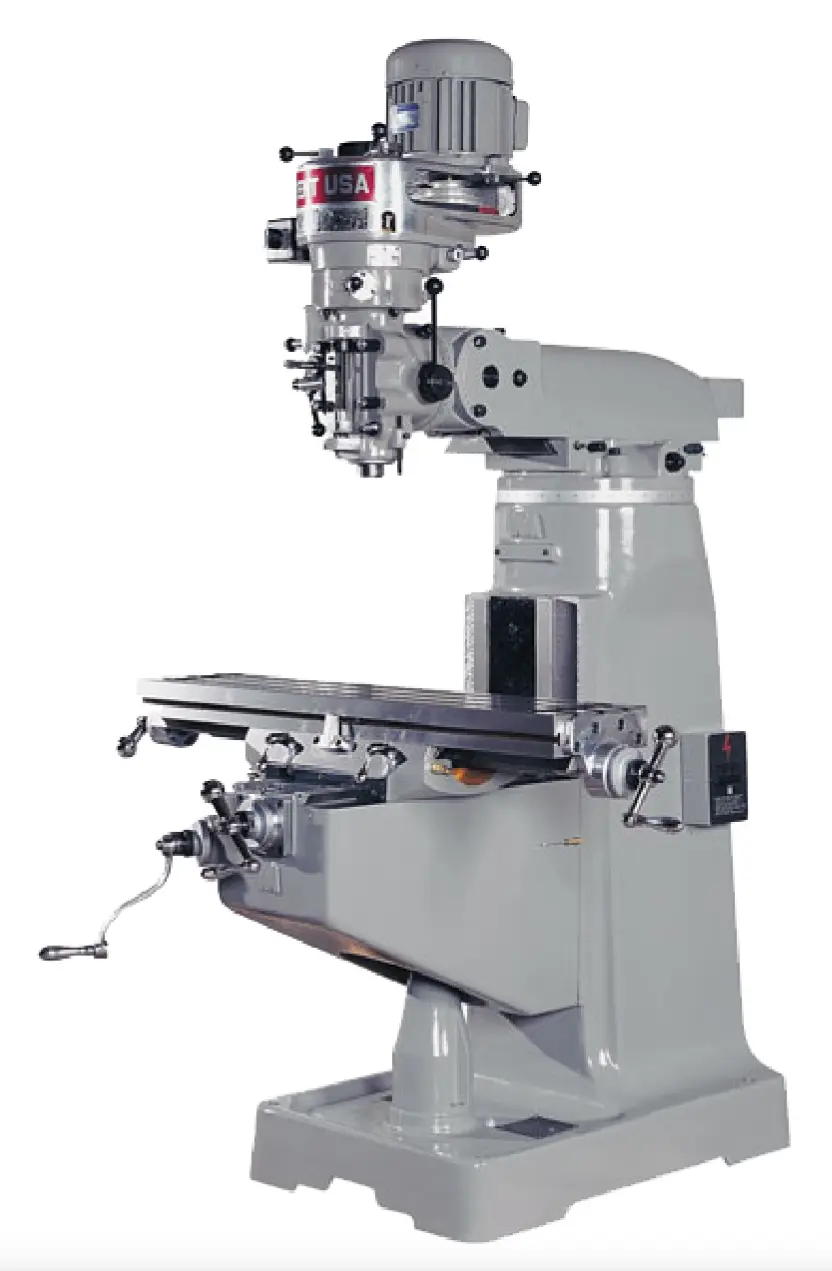

9" x 42" KENT USA KTM-3SMANUAL KNEE MILL - NEW
PRODUCT FEATURES
3 HP spindle motor, 16 speeds step pulley milling head
9” x 42” hardened and ground table
Table, saddle, and knee with hardened and ground dovetail ways
Precision ground leadscrews with backlash compensating double nut
Precision bored and ground milling head, with super precision ABEC-7 bearings
Meehanite® casting, with built in coolant reservoir in machine base
Centralized one-shot lubrication, with metered check-valves
OPTIONAL ACCESSORIES
Dro System
Table (X-Axis) Power Feed
Saddele (Y-Axis) Power Feed
Knee (Z-Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Tray
Right Angle Milling Attachment w/ Arbor Support
Rustlick Coolant (1 Gal., Mixes 1:30)
Riser Blocks (4″/6″/8″)
Angle-lock Vises (6″/8″)
Rotary Table
Clamping Kit (52pc)
R-8 Collet Set
Single Phase Motor Option
NMTB-30 Spindle
Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
Quill Travel
Ram Travel
Spindle Motor
Spindle Speed
Spindle Taper
Quill Diameter
Quill Feed Rate
Drilling Capacity (Manual / Power)
Boring Capacity
Milling Capacity
Maximum Work Load (Center)
Spindle Nose to Table Surface
Spindle Center to Column
Net Weight
Gross Weight
Shipping Dimensions
Power Requirements
KTM-3S
9" x 42"
28"
12"
15"
5"
14.5"
3 HP
80–5440 RPM (16–Speeds)
R-8
3.375"
0.0015" / 0.003" / 0.006" in/rev
0.75" / 0.37" diameter
6" diameter
2.0 in³/min
750 lbs
33" - 18.25"
5" - 19.5"
2200 lbs
2300 lbs
72" x 72" (skid)
220 volts, 3 phase, 60 Hz, 10 Amp (optional 440v, requires 5 Amp)
