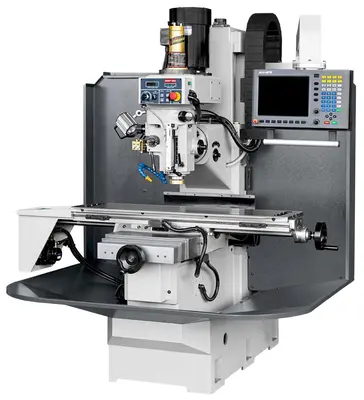

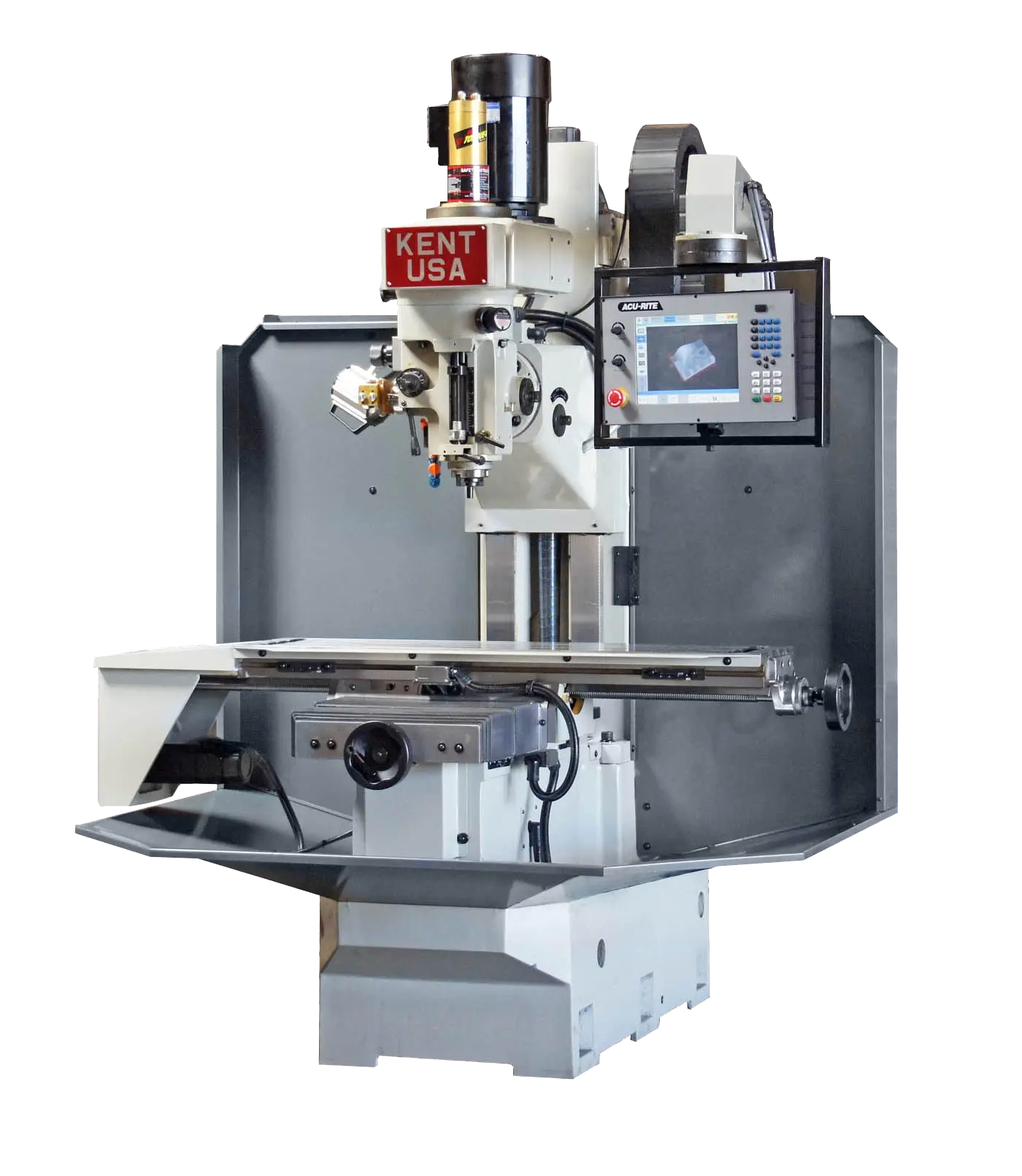

12" x 50" KENT USA TW-32QI MANUAL BED MILL - NEW
PRODUCT FEATURES
7.5 HP spindle motor
Programmable spindle rpm control
Spindle rpm over-ride knob on control
60-6000 RPM without manual gear changes
NST-40 or CAT-40 taper spindle available
Enhanced flux-vector inverter on spindle drive
Metal hand wheels on X-axis and Y-axis
Full automatic CNC and manual/DRO mode capability
Solid boxed ways on column and saddle ways
Metal telescoping way cover on front Y-axis
Auto lubrication unit with metered check valves
Flood coolant with splash guard and chip pan
Built-in coolant reservoir in machine base
Overhead arm mounting of CNC control
Halogen work light built-in for convenience
DRO mode for manual machining capability
Large 1.25” diameter precision ground ball screws
Manual quill capability for greater flexibility
OPTIONAL ACCESSORIES
Conversational CNC Control
Programmable Spindle RPM and M-Function Option
Spindle Override Knob on Control
Flux-Vector AC-Frequency Drive Head
Auto Lubrication System and Halogen Work Light
Flood Coolant System
Air-Power Draw Bar
Chip Pan
Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
Spindle Center to Column
Spindle to Table
Quill Travel
Quill Diameter
T-Slots (number x width)
Coolant Pump
Spindle Motor
Spindle Taper
Speed Range
Quill Power Feed (per rev)
Drilling Capacity (Manual)
Drilling Capacity (Power)
Boring Capacity
Milling Capacity
Maximum Work Load
Net Weight
Gross Weight
Packing Dimension
Power Requirements
TW-32QI
12" x 50"
34" (32" w/ control)
20" (18.5" w/ control)
20" (18.5" w/ control)
20"
4" to 24"
5.5"
4.173"
3 x 5/8"
0.25 HP
7.5 HP
NST-40 or CAT-40
60-6000 RPM
0.0017" / 0.0032" / 0.0054"
1.25"
0.625"
8" Diameter
2.5 in³/min
1000 lbs (distributed)
4200 lbs
4500 lbs
72" x 86" x 88"
220 volts, 60 Hz, 3-phase, 30 Amps
