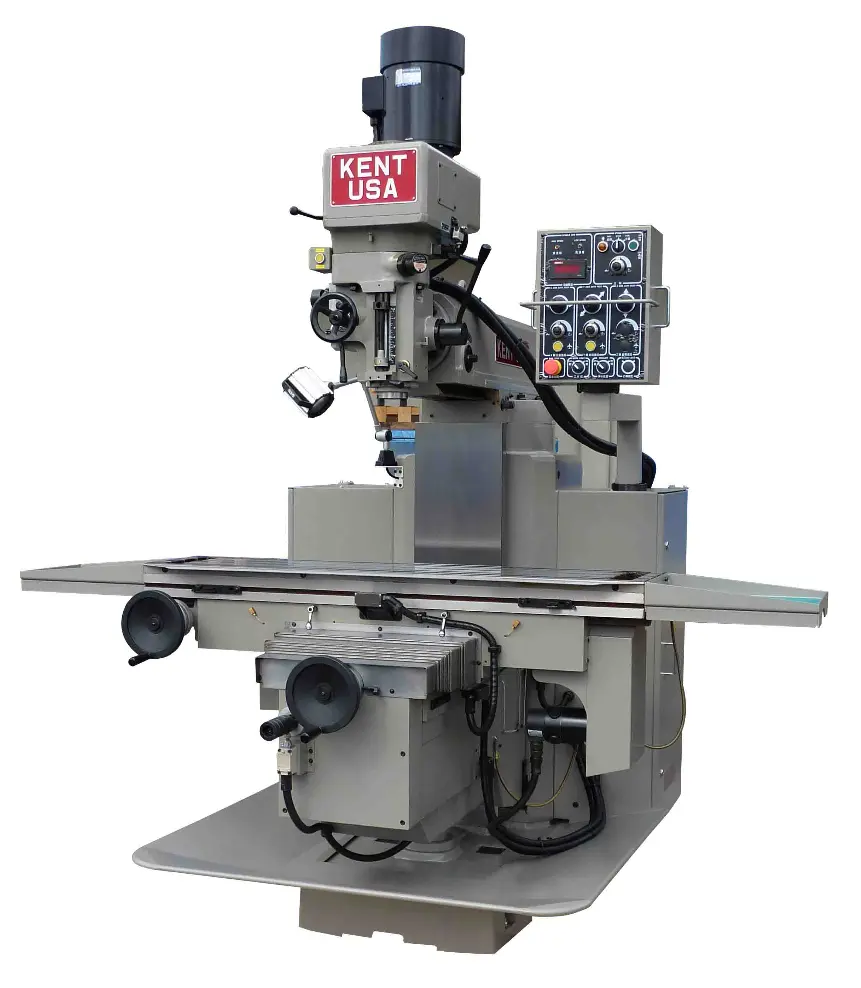

NEW KENT KTM-5AVKF

Equipped With
12" x 50" KENT USA KTM-5AVVF MANUAL KNEE MILL - NEW
PRODUCT FEATURES
13” x 59” hardened and ground table top
Saddle and knee with hardened and ground square (box) ways
Oversized precision ballscrews in X & Y axes, telescoping cover on front cross way
X & Y axes driven by DC servo motor
Precision bored and ground milling head, with super precision ABEC-7 bearing
Meehanite® casting, with built in coolant reservoir in machine base
Coolant system and chip tray
Centralized automatic lubrication, with metered check-valves
OPTIONAL ACCESSORIES
Quick change tooling package (Mach-1)
NMTB-30 spindle
Flood coolant system (Built-in base)
Knee (Z-axis) power feed
Air power drawbar
Flood coolant system
Chip tray
3-D edge finder
Knee linear encoder feedback for coupled z-axis position
AMI with programmable M-functions


Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
Quill Travel
Ram Travel
Spindle Motor
Spindle Speed
Spindle Taper
Quill Diameter
Quill Feed Rate
Drilling Capacity (Manual / Power)
Boring Capacity
Milling Capacity
Maximum Work Load (Center)
Spindle Nose to Table Surface
Spindle Center to Column
Net Weight
Gross Weight
Shipping Dimensions
Power Requirements
KTM-5AVKF
13" x 59"
39.37"
20"
20"
5.5"
21"
 5 HP
70–4500 RPM (Var)
NTMB-40
NA
NA
NA
NA
NA
1200 lbs
3.15" - 23.23"
5.31" - 26.38"
6050 lbs
6300 lbs
80" x 80" (skid)
220 Volts. 3 Phase, 60Hz, (10 Amp (Optional 440V, requires 12.5 Amp)
