NEW KENT TW-50MCO

Equipped With

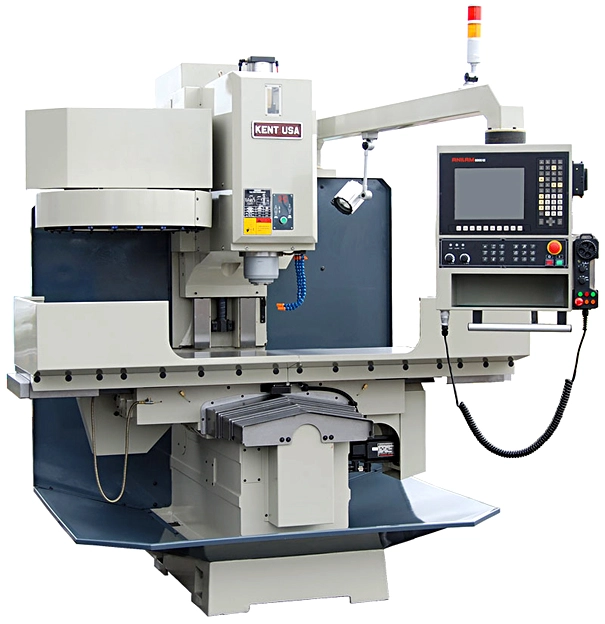

18" x 59" KENT USA TW-50MCO MANUAL BED MILL - NEW
PRODUCT FEATURES
10 HP AC Servo Spindle Motor
Meehanite GB300 casting for superior rigidity
Hardened and Ground Square Y and Z-axis ways
Hardened and Ground table top and dovetail ways
Precision Ground ballscrews on X, Y and Z-axis
Ultra precision ground spindle, ABEC-7 bearings
Hardened and Ground spindle spline and taper
Auto Lube system with metered Check valves
Metal telescoping way cover on Y-axis
Built in Coolant system and Chip pan
Halogen work light
STANDARD ACCESSORIES
20 Tools Carousel ATC
Auto-Lubrication Unit
Flood Coolant System
OPTIONAL ACCESSORIES
MPG Handheld Jog Box
Clamping Kit
CAT 40 End Mill Adapters
Rustlick G25 Coolant
Angle-Lock Vise
Rotary Table
Full Enclosure


Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
Spindle Center to Column
Spindle to Table
Quill Travel
Quill Diameter
T-Slots (number x width)
Coolant Pump
Spindle Motor
Spindle Taper
Speed Range
Quill Power Feed (per rev)
Drilling Capacity (Manual)
Drilling Capacity (Power)
Boring Capacity
Milling Capacity
Maximum Work Load
Net Weight
Gross Weight
Packing Dimension
Power Requirements
TW-50MCO
18" x 68"
50" (48" w/ control)
22" (20" w/ control)
22" (20" w/ control)
22"
3.54" to 23.16"
NA
NA
3 x 5/8"
0.25 HP
10 HP (7.5 HP For Fanuc System)
CAT40 or BT40
70-8000 RPM
NA
NA
NA
8" Diameter
2.5 in³/min
10 lbs (distributed)
7700 lbs
8500 lbs
112" x 90" x 99"
220 volts, 60 Hz, 3-phase, 60 Amps
