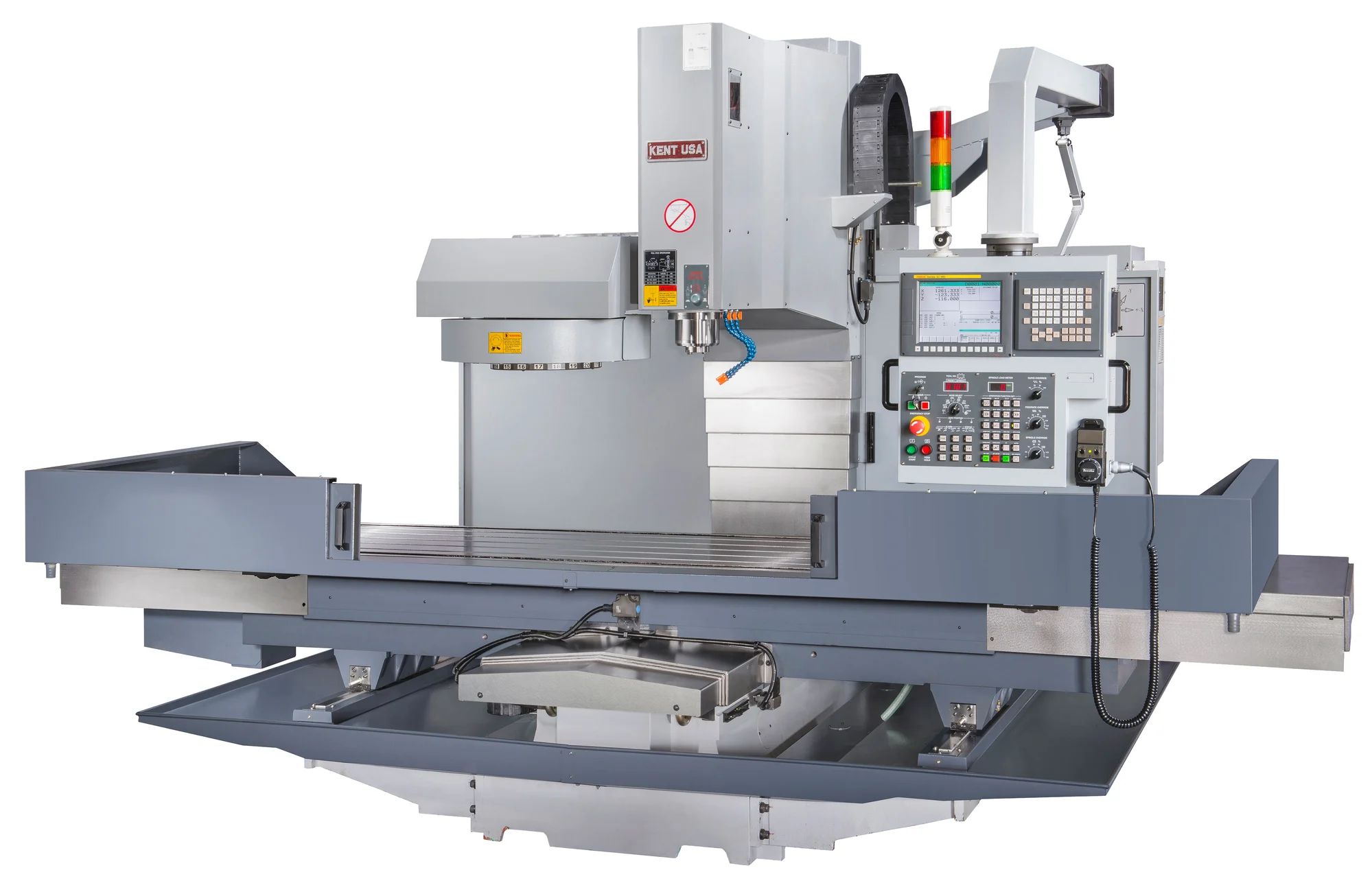

NEW KENT S-2000

Equipped With
24" x 73" KENT USA S-2000 CNC VERTICAL BED MILL  - NEW
PRODUCT FEATURES
15 HP Peak AC Servo Spindle Motor
Meehanite casting for superior rigidity
Hardened and Ground Square Y and Z-axis ways
Hardened and Ground table top and dovetail ways
Precision Ground ballscrews on X, Y and Z-axis
Ultra precision ground spindle, ABEC-7 bearings
Hardened and Ground spindle spline and taper
Auto Lube system with metered Check valves
Metal telescoping way cover on Y-axis
Built in Coolant system and Chip pan
Halogen work light
Optional MPG Handwheels on X, Y, & Z axis
STANDARD ACCESSORIES
Fanuc 0i-MD CNC Control
Fanuc AC Servo Spindle Motor
Auto–Lubrication Unit
Flood Coolant System
OPTIONAL ACCESSORIES
20 Tool Carousel Type
440V Transformer
Angle-Lock Vise
Rotary Table
Clamping Kit
Titanium Nitride Coated End Mill Set
Rustlick G25 Coolant



Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
Spindle Center to Column
Spindle to Table
Quill Travel
Quill Diameter
T-Slots (number x width)
Coolant Pump
Spindle Motor
Spindle Taper
Speed Range
Quill Power Feed (per rev)
Drilling Capacity (Manual)
Drilling Capacity (Power)
Boring Capacity
Milling Capacity
Maximum Work Load
Net Weight
Gross Weight
Packing Dimension
Power Requirements
S-2000
30" x "92"
78.7"
32"
28"
35"
3" to 31"
NA
NA
3 x 5/8"
0.25 HP
15 HP
CAT40 or BT40
80-6000 RPM
NA
NA
NA
NA
NA
3960 Lbs
16,500 lbs
18,150 lbs
152" x 96" x 110"
220 volts, 60 Hz, 3-phase, 70 Amps
