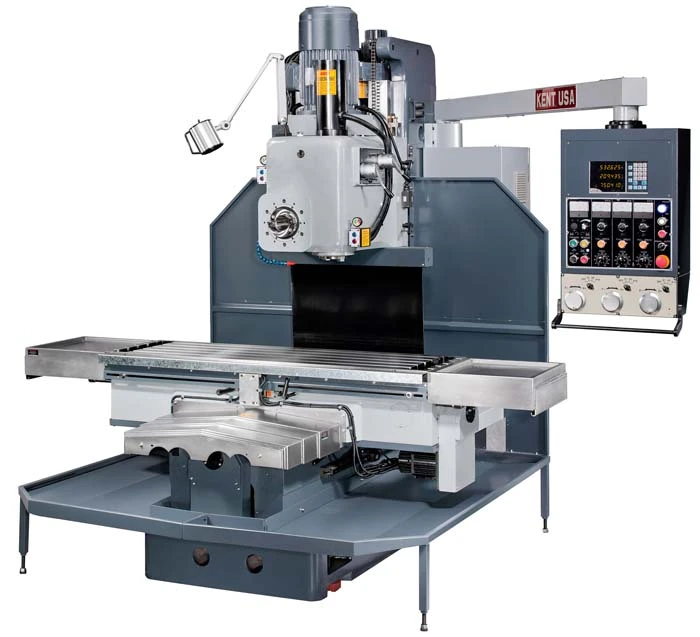

NEW KENT JY-VH650B

Equipped With
19.7 " x 75" KENT USA JY-VH650 COMBINATION HORIZONTAL & VERTICAL SPINDLE MILL - NEW
PRODUCT FEATURES
10 HP spindle motor infinitely variable speed, #50 taper spindle, 24” x 87” hardened and ground table top
Saddle and base with hardened and ground square (box) ways
Precision ACME screws in X, Y, & Z axes
X, Y, & Z axes driven by AC motor
Precision bored and ground milling head, with super precision ABEC-7 bearings
Meehanite® casting, with built in coolant reservoir in machine base
Coolant system and chip tray
Centralized automatic lubrication, with metered check-valves
Precise angular contact bearings spindle
Precision manufactured from SCM21 alloy steel, heat treated and  precision ground spindle
Hardened and precision ground for quiet running gears
High torque servo motor X-axis feed
Choice of Fanuc or Mitsubishi CNC controller
Hardened, precision ground, and Turcite-B coated sideways for maximum wear resistance
Convertible into CNC controlled system

OPTIONAL ACCESSORIES
Dro System
Air Power Drawbar (Per Spindle)
Angle-Lock Vice
Rotary Table (Vertical and Horizontal)
Clamping Kit
Chuck System
Rustlick Coolant (1 Gal, Mixes 1:30)

Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
T-Slot
X, Y, Z Feedrate
X, Y, Z Rapid Feedrate
Spindle Motor
Vertical Spindle Speed
Vertical Spindle Taper
Spindle Nose to Table
Spindle Center to Column
Horizontal Spindle Speed
Horizontal Spindle Taper
Spindle Center to Table
Spindle Nose to Rear
Maximum Work Load
Machine Net Weight
Shipping Weight
Dimensions
JY-VH650
24" x 87"
67"
41.3"
37.4"
0.98" x 0.2" x 4.92"
1.2"/min -110"/min
110"/min
10 HP
45 - 1500 RPM (variable)
NT-50
0 - 30"
26"
45 - 1500 RPM (variable)
NT-50
-.39 - 31.88"
11.6"
4400 lbs
16500 lbs
18700 lbs
139" x 138" x 121
"
