NEW KENT KUM-2500UM

Equipped With

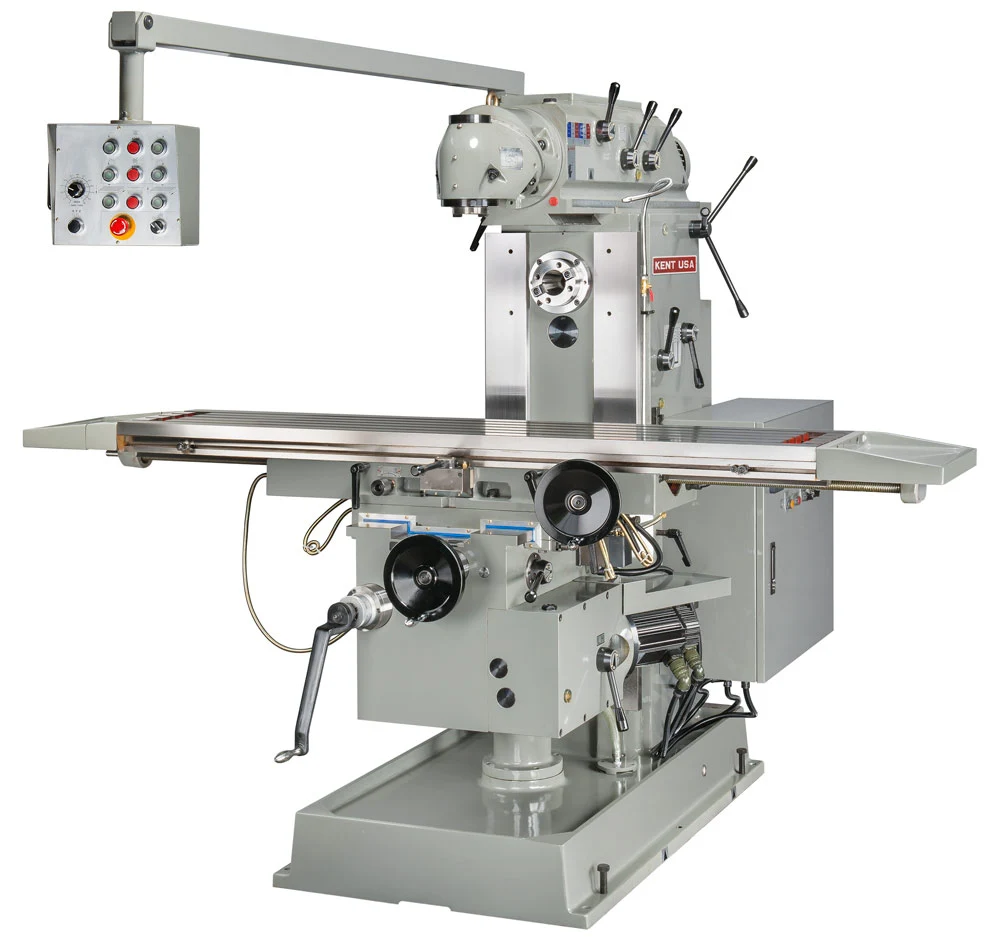

14" x 73" KENT USA KUM-2500UM UNIVERSAL MILL - NEW
PRODUCT FEATURES
10 HP horizontal spindle motor,12 speed ranges(40~1800RPM),13.7”x 72.8” hardened and ground table top
Saddle and knee with hardened and ground square (box) ways
Table swivels ± 45 degrees left & right
Meehanite® casting body GC-45/DIN-40
X,Y and Z axis are variable speed with inverter by gear-box
Rapid traverse on X,Y and Z axis
All gears and shafts are hardened and ground
Extra wide square cross and knee ways and dovetail longitudinal ways for enhanced rigidity


STANDARD ACCESSORIES
Coolant
Longitudinal Gear Box Feed
Table Elevating Motor
Tools & Tool Box
Leveling Blocks
Leveling Bolts
OPTIONAL ACCESSORIES
Vertical Milling Head
Horizontal & Vertical Rotary table
Dividing Head
Clamping Kit

Working Surface of Table
Max Load of Table
Number of T-Slots of Table
Width of T-slots of Table
Distance Between T-slot
Max Swivel Angle of Table
Longitudinal Travel (X-axis)
Cross Travel (Y-axis)
Vertical Travel (Z-axis):
Distance From Spindle to Overarm
Taper of Spindle
Speed Range of Spindle
Speed Step of Spindle
Spindle to Bottom of Ram
Spindle Center to Table
Max Swivel Angle
Milling Arbor Diameter
Diameter of Main Shaft Nose
Longitudinal & Cross Feed
Vertical Feed
Longitudinal Traverse (X & Y Axis)
Vertical Traverse (Z-axis)
Spindle Motor
Table Feed Motor (Long)
Table Rapid Motor (Vertical)
Coolant Pump Motor
Motorized Overarm Spindle Taper
Motorized Overarm Speed Step
Motorized Overarm Speed Range
Motorized Overarm Power
Machine Dimension
Net Weight
Gross Weight
KUM-2500UM
13.7" x 72.8"
1540 lbs
5
15.25"
2.36"
±45°
46"
15.75"
20"
6
N.S.T. 50 (Opt ISO 40)
40-1800 RPM
12
NA
NA
NA
Ø 1"
Ø 3.5"-5.1"
0.4"-47"/min
0.2" - 23"/Min
47"/min
23"/min
10 HP
0.75 HP
NA
1/8 HP
ISO 50 (Opt ISO 40)
12
35-1600 RPM
5.5
70" x 89" x 88"
7054 lbs
7716 lbs
