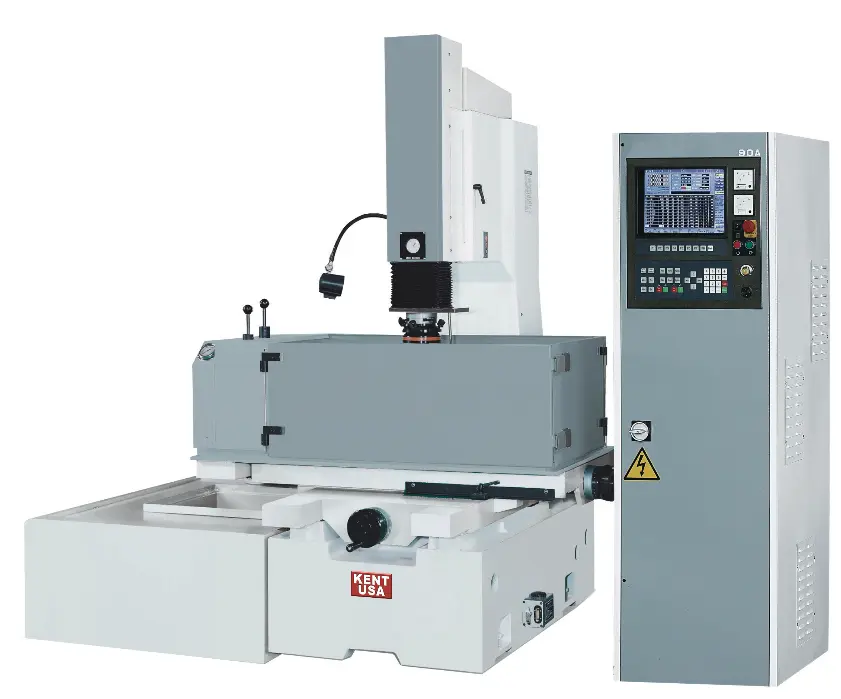

NEW KENT KEB-707B

Equipped With
KENT USA KEB-707B SINKER TYPE ELECTRICAL DISCHARGE MACHINE (EDM) - NEW
PRODUCT FEATURES
30 Amp power supply capacity
Fully ribbed solid castings for maximum rigidity and stability
Built-in 3-axis DRO system integrates with machine control for positioning and auto z-depth setting in for simple programming
Maximum 500 programmable steps for setting all machining parameters enables complete start to finish auto cycle for even the most complex jobs
MOSFET electric discharge circuit design is ideal for fast burning, reduced electrode wear, and uniform surface finish applications
Precision linear ways with oil immersed ball screw and DC Servo motor on Z-axis
Power rapid Ram up/down traverse motor
Centralized one-shot lubrication system provides lubrication to all points

STANDARD ACCESSORIES
Work head
Work lamp
Filter
Tool box
Automatic fire extinguisher
Color LCD
OPTIONAL ACCESSORIES
Super sparking
Permanent magnetic chuck
Work Tank
Work Table
Travel (X / Y / Z / W)
Distance Between Plate to Table
Max Electrode
Max Work Load
Max Output Current
Max Stock Removal
Best Surface Finish
Best Electrode Wear
Dielectric Tank
Net Weight
KEB-707B
46.1″ x 27.6″ x 16.9″
31.5″ x 19.7″
19.7″ / 15.8″ / 7.9″ / 11.8″
9.5″ ~ 29.1″
331 LBS
3307 LBS
60 Amp (Opt. 90)
200 mm/min
Ra 0.2 mmRa
< 0.15%
850 L (225 Gal.)
4409 LBS
