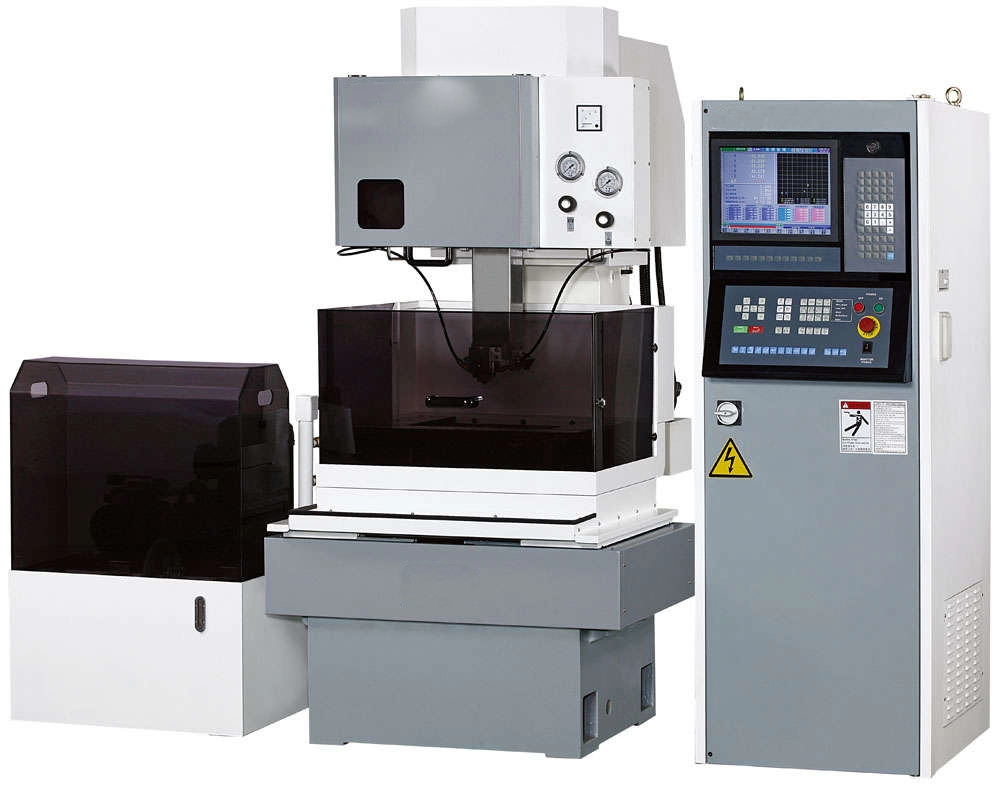

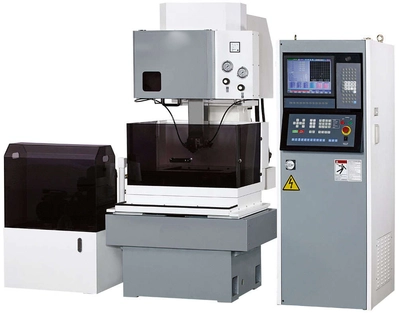

KENT USA WFI-90 CNC WIRE FLUSHING TYPE EDM - NEW
PRODUCT FEATURES
Machine structure designed and analyzed by CAE system for high structural rigidity.
U, V, Z axis strategically placed on upper column for enhanced spindle rigidity and precision.
Panasonic AC Servo motor (AWT System) and magnet power clutch wire-receiving systems.
Permanent generator control system for wire tension stability
Accurate linear guide ways coupled with patented linear and block design
STANDARD ACCESSORIES
Automatic vertical alignment jig
Power feed contact
Filter
Clamping tool
Wire guide (Ø0.25 mm)
Brass wire (Ø0.25 mm)
Ion exchange resin (5L)
Tool box
OPTIONAL ACCESSORIES
ATW auto threading wire system
Diameter guide upper + lower (0.25 mm)
CAD/CAM Software
Water chiller
Power regulator / 15 kva
Parallel bar – for setting the work piece
Filter (2 pcs)
Resin / 5L
Brass Wire 0.25 mm / 3 kg
Power feed contact (2 pcs)
Water resistance meter
Wire tension meter
Wire speed meter
Water nozzle (upper/lower)(2 pcs) / 1 set
22.5 degree water nozzle / set (upper/lower + diameter guide)
Max Work Piece Size (L x W x H)
Max Work Piece Weight
Drive & Servo
Simulation Axis
X/Y-Axis Travel
Z-Axis Travel
U/V-Axis Travel
Wire Diameter Range
Max Taper Angle
Max Axes Load
Conductivity
Water Tank Capacity
Net Weight
Dimension (W x D x H)
WFi-90
54” x 29.9” x 11.6"
2866 lbs
5 axes AC servo
X / Y / U / V (4 axes)
35" / 19.7"
11.8"
3.93” / 3.93”
Ø 0.1~0.3 mm
± 22.5° 3.93”
22 lbs
Automatic
95 Gallons
11464 lbs
141” x 114” x 91”
