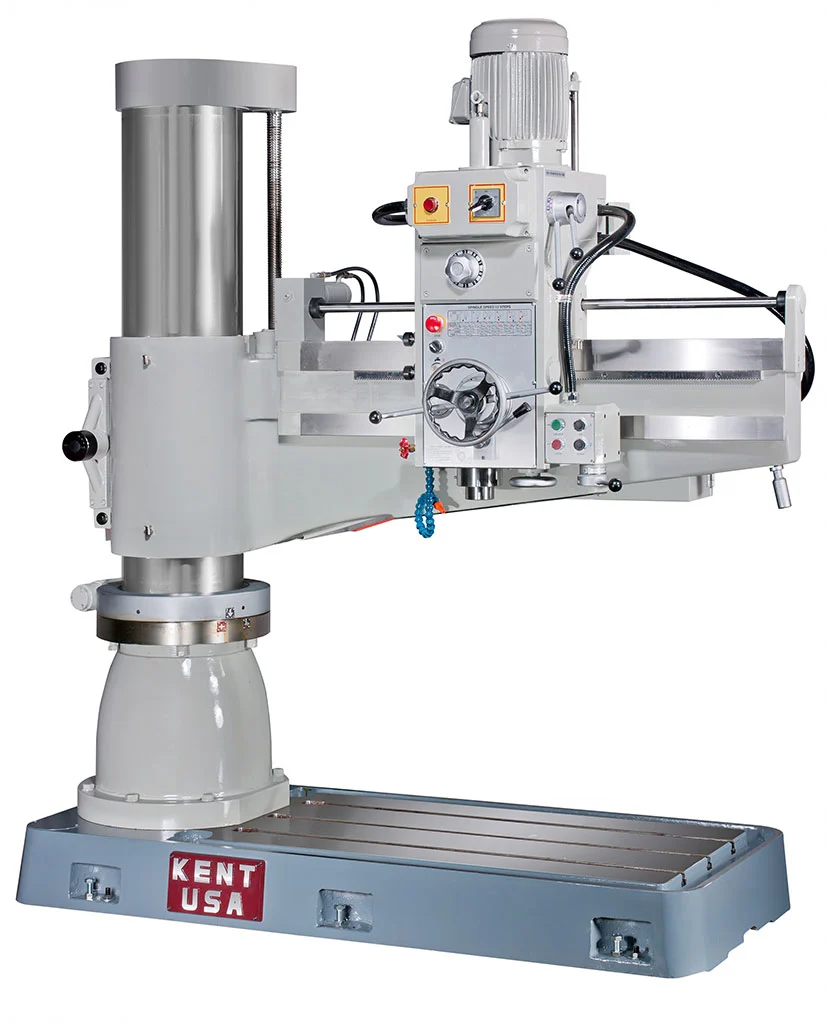

8.26" x 32" KENT USA TPR-720A RADIAL ARM DRILL - NEW
PRODUCT FEATURES
6 spindle speed and 3 feed rates
Centralized single level control for forward and reversal of spindle
Ultra low noise
Light and handy to operate
Safety overload
Auxiliary dial for spindle feed depth
With standard accessories
Perfect for drilling huge holes
Equipped with power spindle feeds and efficient coolant system
Precision engineered for the most precise jobs
STANDARD ACCESSORIES
Work table
Tool releasing wrench
Drift
Reducing sleeve
Coolant system
Work light
Maximum Drilling Diameter (castings/steel)
Distance Between Spindle Axis and Column (max/min)
Distance Between Spindle End and Working Surface of Base Plate (max/min)
Spindle Taper
Range of Spindle Speed
Range of Spindle Feed Speed
Diameter of Outer Column
Length of Arm
Table Size
Spindle Motor
Net Weight
Gross Weight
TPR-720A
1.97″ / 1.25″
29.5″ / 8.7″
41.7″ / 10.2″
M.T. 4
88, 154, 282, 455, 796, 1500 RPM (6 Steps)
0.002″, 0.0035″, 0.0059″/Rev. (3 Steps)
8.26″
32”
24″ x 17.5″ x 15″
2 HP
2530 LBS
2680 LBS
