NEW KENT TPR-1230H

Equipped With

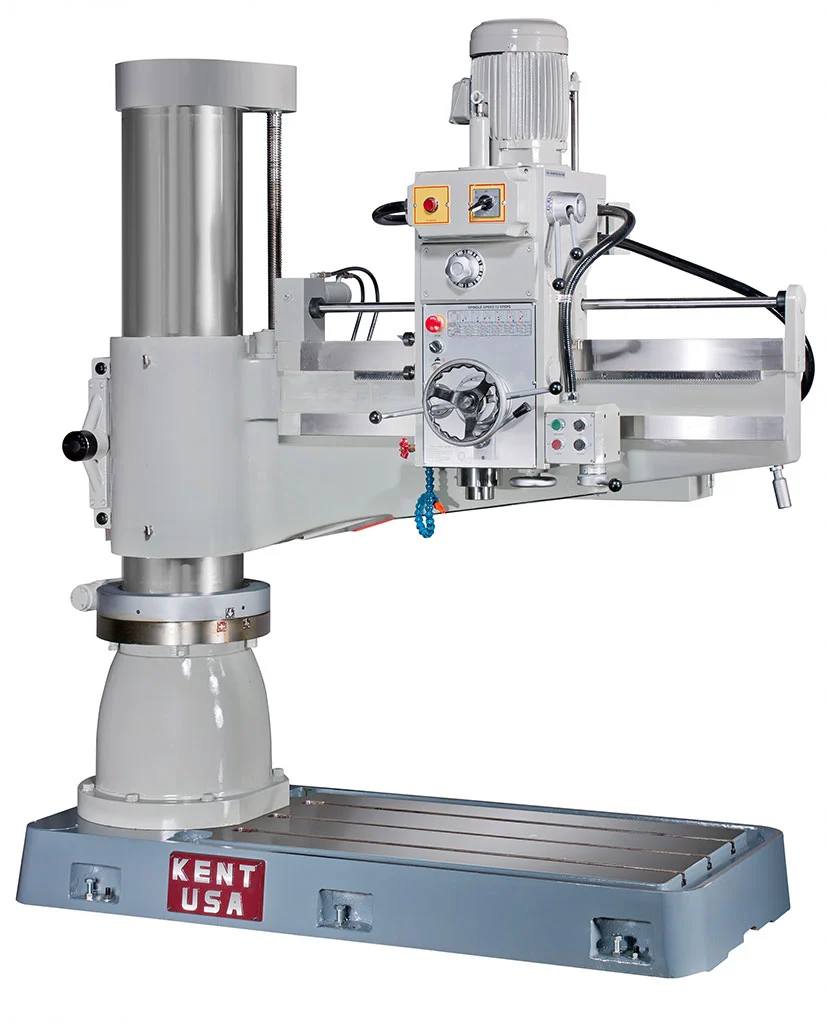

12" x 48" KENT USA TPR-1230H RADIAL ARM DRILL - NEW
PRODUCT FEATURES
12 spindle speed and 3 feed rates
Centralized single level control for forward and reversal of spindle
Ultra low noise
Light and handy to operate
Safety overload
Auxiliary dial for spindle feed depth
With standard accessories

STANDARD ACCESSORIES
Work table
Tool releasing wrench
Drift
Reducing sleeve
Coolant system
Work light

Maximum Drilling Diameter (castings/steel)
Distance Between Spindle Axis and Column (max/min)
Distance Between Spindle End and Working Surface of Base Plate (max/min)
Spindle Taper
Range of Spindle Speed
Range of Spindle Feed Speed
Diameter of Outer Column
Length of Arm
Table Size
Spindle Motor
Net Weight
Gross Weight
TPR-1230H
2.16″ / 1.65″
46″ / 13.4″
53.9″ / 19.3″
M.T. 4
44-1500 RPM (12 Steps)
0.002″, 0.0035″, 0.0059″/Rev. (3 Steps)
11.8″
48”
25″ x 20.5″ x 16.3″
3 HP (2 Speed Motor)
4620 LBS
5060 LBS
