NEW KENT TPR-C2500

Equipped With

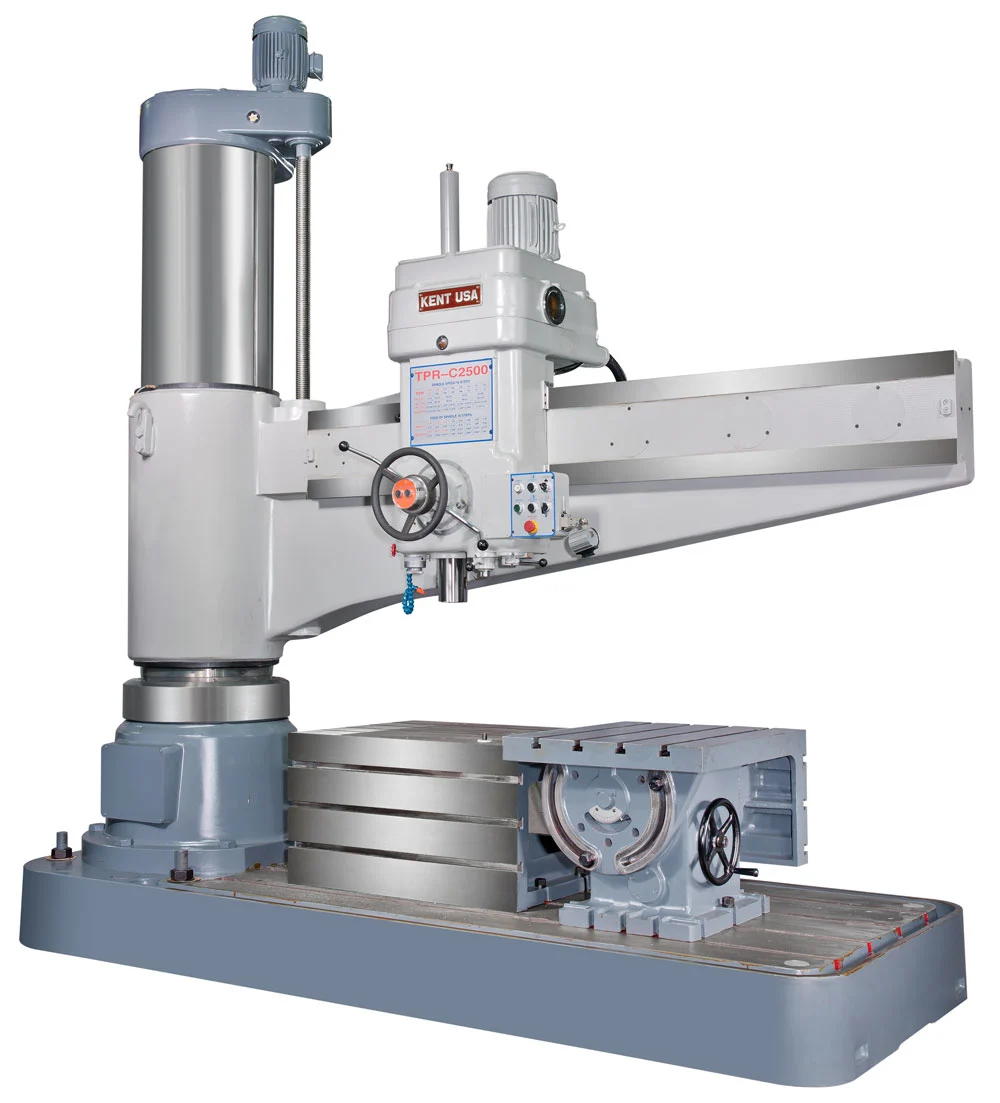

22" x 102" KENT USA TPR-C2500 RADIAL ARM DRILL - NEW
PRODUCT FEATURES
16 spindle speed and 16 feed rates
Centralized single level control for forward and reversal of spindle
Ultra low noise
Light and handy to operate
Safety overload
Auxiliary dial for spindle feed depth
With standard accessories
STANDARD ACCESSORIES
Work table
Tool releasing wrench
Drift
Reducing sleeve
Coolant system
Work light

Maximum Drilling Diameter (castings/steel)
Distance Between Spindle Axis and Column (max/min)
Distance Between Spindle End and Working Surface of Base Plate (max/min)
Spindle Taper
Range of Spindle Speed
Range of Spindle Feed Speed
Diameter of Outer Column
Length of Arm
Table Size
Spindle Motor
Net Weight
Gross Weight
TPR-C2500
3.94″ / 3.15″
98.4″ / 19.68″
78.7″ / 21.6″
M.T. 6
16-1250 RPM (16 Steps)
0.0016″- 0.125″/Rev. (16 Steps)
21.6″
102”
39.4″ x 31.5″ x 22″
10 HP
24200 LBS
27500 LBS
