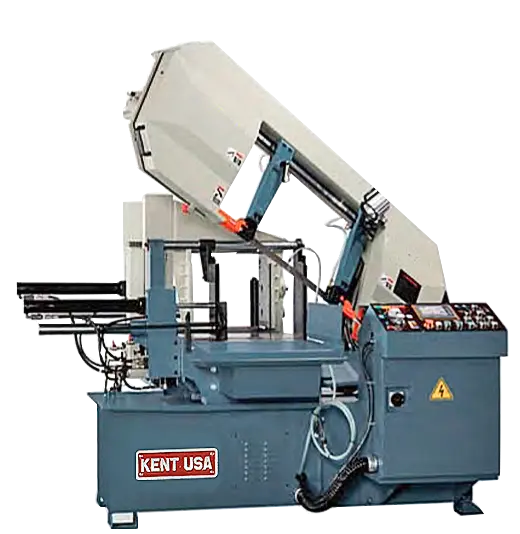

NEW KENT WS-1824SA

Equipped With

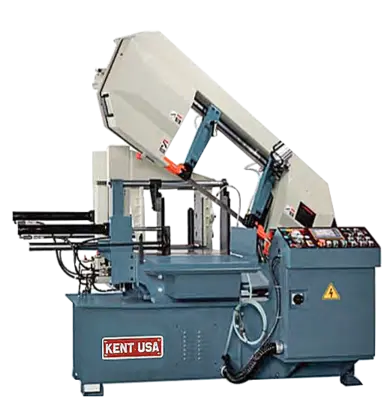

18" x 24" KENT USA WS-1824SA HORIZONTAL BAND SAW - NEW
PRODUCT FEATURES
Touch screen and length encoder
Miter cutting 0° – 45° (R)
Hydraulic blade tension
Vise pressure regulator
Vertical vises for bundle cutting
Variable blade speed by inverter
Power chip brush
Auto chip conveyer
Bow height setting manually
Swiveling saw head manually
Work light
Capacity (90°)
Capacity (R45°)
Capacity (R60°)
Capacity (L45°)
Capacity (L60°)
Blade Motor
Blade Size
Blade Speed
Coolant Motor
Coolant Tank
Hydraulic Motor
Hydraulic Tank
Feeding Stroke
Bundle Cutting (HxW)
Min. Cut Off Length
Packing Size
Table Height
Net Weight
Gross Weight
WS-1824SA
 18"  18" █ 15" x 24"
 15"  15"
-
-
-
5 HP AC
1.6" x 0.05" x 210"
65.6-262.5 fpm
1/6 HP (0.12 kW) x 2P
14.53 US Gal
1 HP (0.75 kW) x 4P
3.96 US Gal
-
-
-
9.8" x 89.4" x 76.8"
36.42"
3351 lbs
3902 lbs
Capacity (90°)
Capacity (R45°)
Capacity (R60°)
Capacity (L45°)
Capacity (L60°)
Blade Motor
Blade Size
Blade Speed
Coolant Motor
Coolant Tank
Hydraulic Motor
Hydraulic Tank
Feeding Stroke
Bundle Cutting (HxW)
Min. Cut Off Length
Packing Size
Table Height
Net Weight
Gross Weight
W-1318SA
 13" █ 13" x 18.1"
 11" █ 13" x 11"
NA
NA
-
5 HP (3.74 kW) x 4P
1.06" x 0.035" x 162.6"
60 Hz, 89-256 fpm
1/8 HP (0.1 kW) x 2P
14.5 US Gal
1/2 HP (0.38 kW) x 4P
3.95 US Gal
27.6"
12" x 18"
> 0.31"
90" x 86" x 68"
32.2"
2904 lbs
3190 lbs
Capacity (90°)
Capacity (R45°)
Capacity (R60°)
Capacity (L45°)
Capacity (L60°)
Blade Motor
Blade Size
Blade Speed
Coolant Motor
Coolant Tank
Hydraulic Motor
Hydraulic Tank
Feeding Stroke
Bundle Cutting (HxW)
Min. Cut Off Length
Packing Size
Table Height
Net Weight
Gross Weight
W-1318SA
 13" █ 13" x 18.1"
 11" █ 13" x 11"
NA
NA
-
5 HP (3.74 kW) x 4P
1.06" x 0.035" x 162.6"
60 Hz, 89-256 fpm
1/8 HP (0.1 kW) x 2P
14.5 US Gal
1/2 HP (0.38 kW) x 4P
3.95 US Gal
27.6"
12" x 18"
> 0.31"
90" x 86" x 68"
32.2"
2904 lbs
3190 lbs
