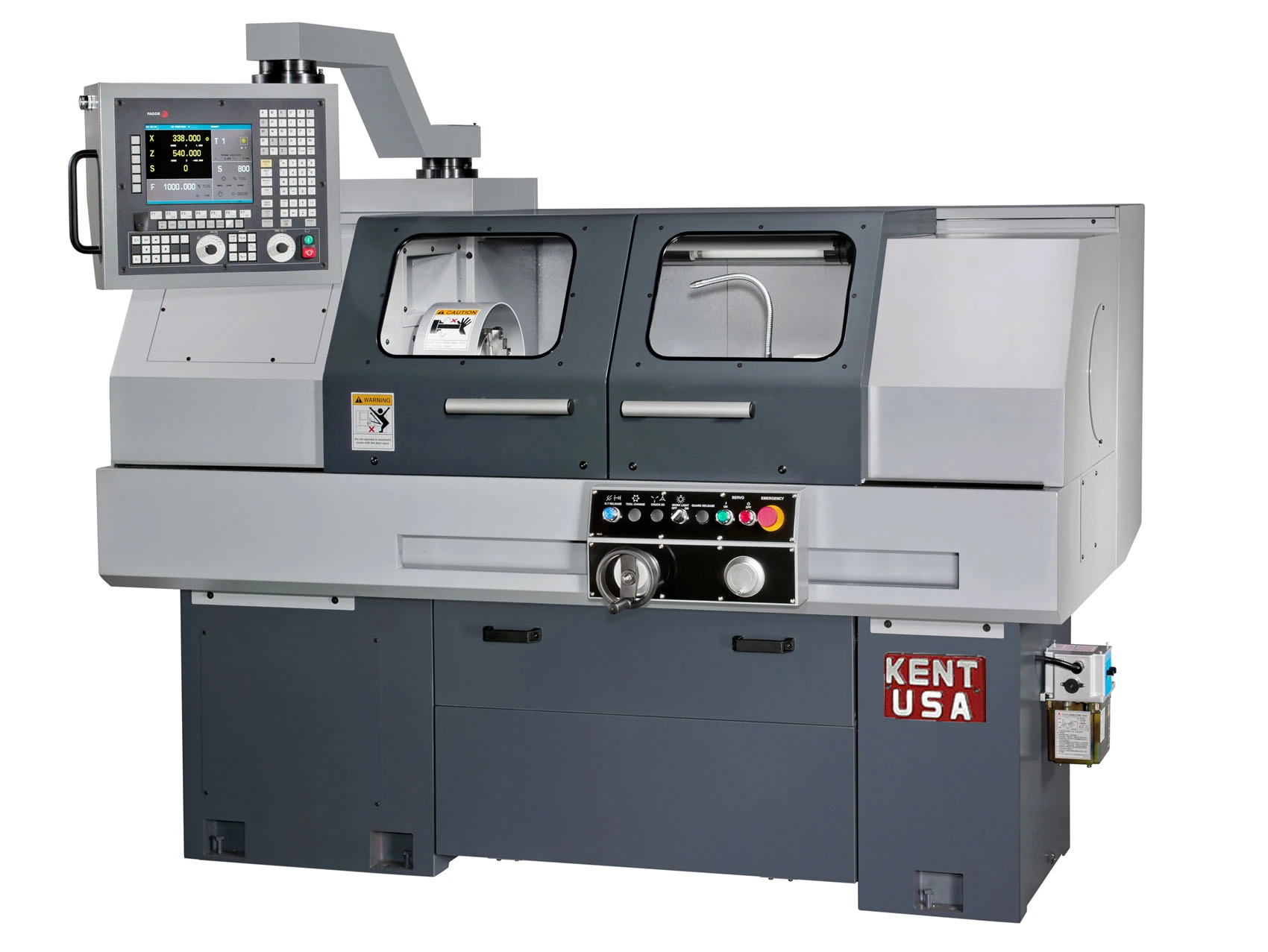

NEW KENT CSM-1440

Equipped With
KENT USA MODEL CSM-1440 CNC PRECISION LATHE - NEW
PRODUCT FEATURES
7.5 HP Peak Fagor Servo Spindle motor
Manual and CNC mode conversational control
Rigid Meehanite castings with extra ribbing
Induction hardened and ground ways
Gearbox with alloy steel gears that are hardened and ground
Extra large precision ground ballscrews
50-2,500 RPM range; electronic handwheels
Auto Lube system with metered Check valves
Optional Automatic 4 position electric Turret available

STANDARD ACCESSORIES
Fagor 8055i CNC control
Fagor AC servo spindle motor
Auto lubrication unit
Flood coolant system
OPTIONAL ACCESSORIES
3-jaw scroll chuck
4-jaw independent chuck
Face plate
Hydraulic chuck
Hydraulic tailstock
Follow rest
Quick change toolpost
Automatic 4 position electric toolpost
Royal live center
Swing Over Bed
Swing Over Cross Slide
Distance Between Centers
Width of Bed
Spindle Nose
Spindle Bore
Spindle Taper
Spindle Speeds
Longitudinal Travel (Z-Axis)
Cross Slide Travel (X-Axis)
Z-Axis Ballscrew Diameter
X-Axis Ballscrew Diameter
Z-Axis Rapid Traverse Speed
X-Axis Rapid Traverse Speed
Tailstock Quill Diameter
Tailstock Quill Travel
Tailstock Taper
Spindle Motor
AC Servo Motor (Z-Axis)
AC Servo Motor (X-Axis)
Net Weight
Gross Weight
Packing Dimension
CSM-1440CNC
14"
8-5/8"
40"
8.1"
Camlock D1-4 (Opt. ASA A1-4)
1.5"
M.T. #5
30-2500 RPM (3 Steps)
33"
8"
1.259", 5 mm pitch
0.98”, 5 mm pitch
236"/min
236"/min
1-3/4"
4-3/4"
M.T. #3
7.5 HP
1.1 HP
1.1 HP
2530 LBS
2750 LBS
100" x 65" x 79"
