NEW KENT CRL-1640

Equipped With

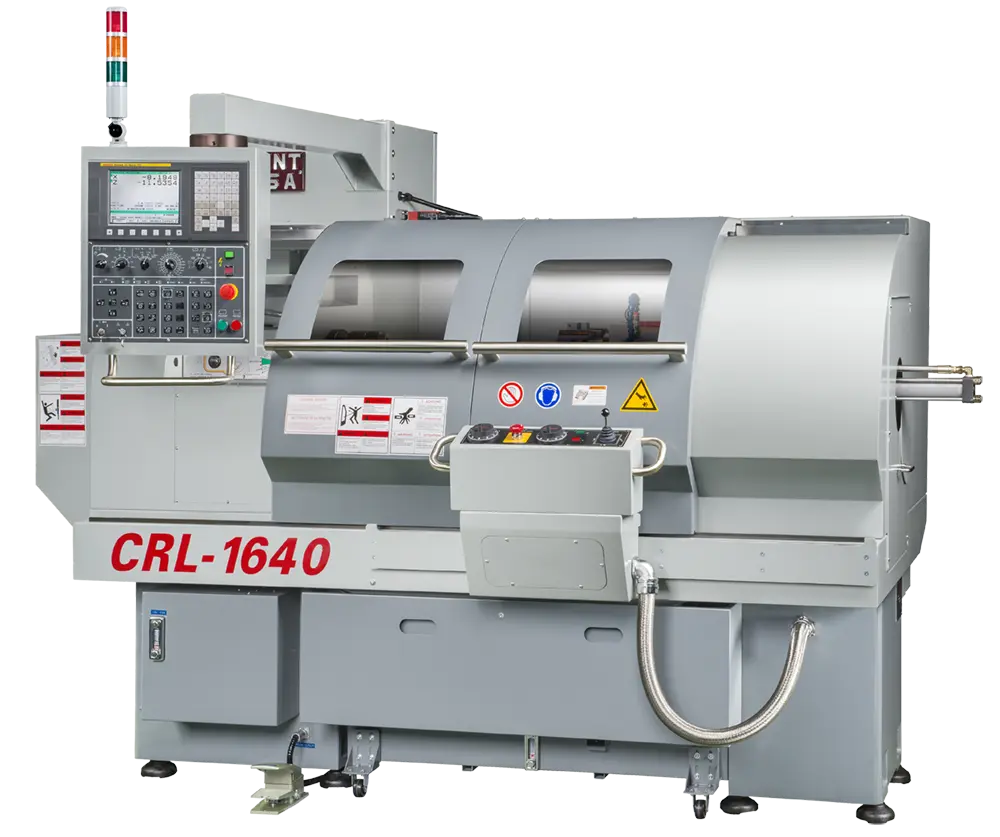

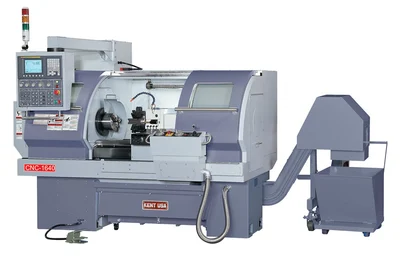

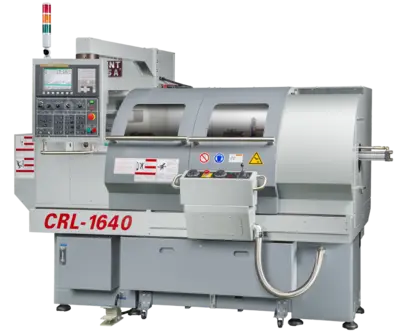

KENT USA MODEL CRL-1640 CNC PRECISION LATHE - NEW
PRODUCT FEATURES
10 HP Peak Fagor Servo Spindle motor
Manual and CNC mode
Rigid Meehanite castings with extra ribbing
Induction hardened and ground ways
2 speed semi-automatic gearbox with alloy steel gears that are hardened and ground
Extra large precision ground ballscrews
25-3000 RPM range; electronic handwheels
Auto Lube system with metered Check valves
Automatic 4 position electric Turret

STANDARD ACCESSORIES
Fagor 8055i CNC control
Fagor AC servo spindle motor
Auto lubrication unit
Flood coolant system

OPTIONAL ACCESSORIES
3-jaw scroll chuck
4-jaw independent chuck
Face plate
Hydraulic chuck
Hydraulic tailstock
Follow rest
Quick change toolpost
Automatic 4 position electric toolpost
Royal live center
Swing Over Bed
Swing Over Cross Slide
Distance Between Centers
Width of Bed
Spindle Nose
Spindle Bore
Spindle Taper
Spindle Speeds
Longitudinal Travel (Z-Axis)
Cross Slide Travel (X-Axis)
Z-Axis Ballscrew Diameter
X-Axis Ballscrew Diameter
Z-Axis Rapid Traverse Speed
X-Axis Rapid Traverse Speed
Tailstock Quill Diameter
Tailstock Quill Travel
Tailstock Taper
Spindle Motor
AC Servo Motor (Z-Axis)
AC Servo Motor (X-Axis)
Net Weight
Gross Weight
Packing Dimension
CRL-1640
16"
9.05"
35"
10.23"
Camlock D1-6 (Opt. ASA A1-6)
2.066"
M.T. #6
30-2500 RPM (3 Steps)
33"
8.5"
1.259", 10 mm pitch
0.787”, 5 mm pitch
295"/min
200"/min
2.283"
5.5"
M.T. #4
10 HP
1.13 HP
0.6 HP
4730 LBS
5830 LBS
125" x 79.7" x 86.6"
