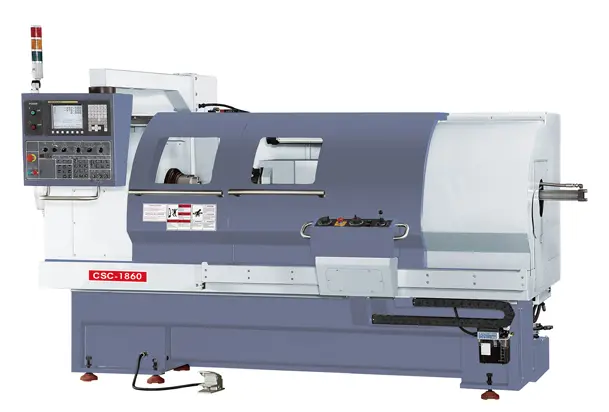

NEW KENT CSC-18 SERIES

Equipped With
KENT USA MODEL CSC-18 SERIES CNC PRECISION LATHE - NEW
PRODUCT FEATURES
15 HP Fanuc Servo Spindle motor
Rigid Mehanite castings with extra ribbing
Induction hardened and ground ways Gearbox with alloy steel gears that are hardened and ground
Extra large precision ground ballscrews
40-4000 RPM range; MPG electronic handwheels
Auto Lube system with metered Check valves
Automatic 4 position electric tool post
STANDARD ACCESSORIES
Fanuc 0i-Mate TD CNC Control
Fanuc servo spindle motor
Auto lubrication unit
Flood coolant system
OPTIONAL ACCESSORIES
3-jaw scroll chuck
4-jaw independent chuck
Face plate
Hydraulic chuck
Hydraulic tailstock
Follow rest
Quick change toolpost
Royal live center
Swing Over Bed
Swing Over Cross Slide
Distance Between Centers
Width of Bed
Spindle Nose
Spindle Bore
Spindle Taper
Spindle Speeds
Longitudinal Travel (Z-Axis)
Cross Slide Travel (X-Axis)
Z-Axis Ballscrew Diameter
X-Axis Ballscrew Diameter
Z-Axis Rapid Traverse Speed
X-Axis Rapid Traverse Speed
Tailstock Quill Diameter
Tailstock Quill Travel
Tailstock Taper
Spindle Motor
AC Servo Motor (Z-Axis)
AC Servo Motor (X-Axis)
Net Weight
Gross Weight
Packing Dimension
CSC-18 SERIES
18"
10"
38" / 57"
12"
ASA A2-6
2.56"
M.T. #6 W/ Sleeves
40-4000 RPM
33.5" / 53"
9.05"
1-5/16", 10 mm pitch
0.787”, 5 mm pitch
400"/min
300"/min
2.677"
6"
M.T. #4
15 HP
1.3 HP
1.3 HP
5170 LBS / 5720 LBS
6300 LBS / 6840 LBS
113" x 83" x 92" / 132" x 83" x 92"
