NEW KENT CNL-1740

Equipped With

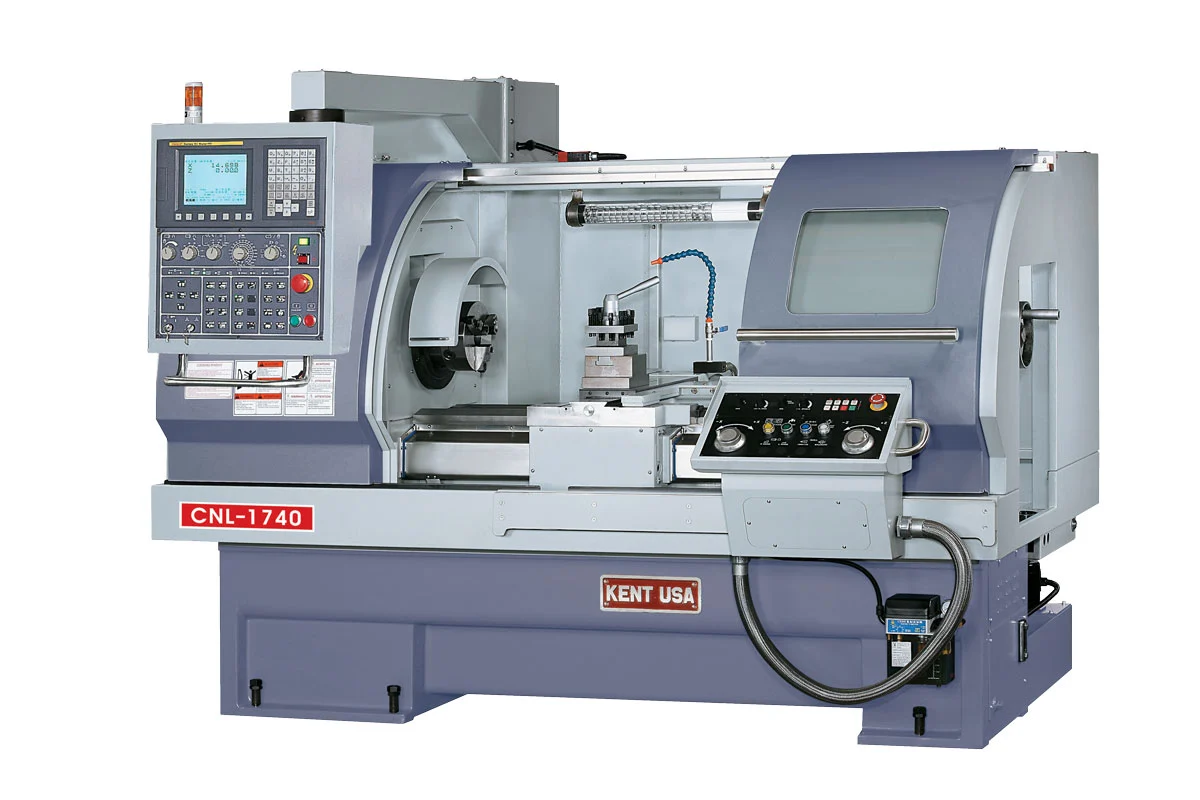

KENT USA MODEL CNL-1740 CNC PRECISION LATHE - NEW
PRODUCT FEATURES
10 HP Peak Fagor Servo Spindle motor
Manual and CNC mode
Rigid Meehanite castings with extra ribbing
Induction hardened and ground ways
2 speed semi-automatic gearbox with alloy steel gears that are hardened and ground
Extra large precision ground ballscrews
25-3000 RPM range; electronic handwheels
Auto Lube system with metered Check valves
Automatic 4 position electric Turret

STANDARD ACCESSORIES
Fagor 8055i CNC control
Fagor AC servo spindle motor
Auto lubrication unit
Flood coolant system

OPTIONAL ACCESSORIES
3-jaw scroll chuck
4-jaw independent chuck
Face plate
Hydraulic chuck
Hydraulic tailstock
Follow rest
Quick change toolpost
Automatic 4 position electric toolpost
Royal live center
Swing Over Bed
Swing Over Cross Slide
Distance Between Centers
Width of Bed
Spindle Nose
Spindle Bore
Spindle Taper
Spindle Speeds
Longitudinal Travel (Z-Axis)
Cross Slide Travel (X-Axis)
Z-Axis Ballscrew Diameter
X-Axis Ballscrew Diameter
Z-Axis Rapid Traverse Speed
X-Axis Rapid Traverse Speed
Tailstock Quill Diameter
Tailstock Quill Travel
Tailstock Taper
Spindle Motor
AC Servo Motor (Z-Axis)
AC Servo Motor (X-Axis)
Net Weight
Gross Weight
Packing Dimension
CRL-1740
17"
10-7/8"
37"
12"
Camlock D1-6 (Opt. ASA A2-6)
2.066"
M.T. #6
25-2800 RPM (3 Steps)
33.5" / 55.1"
9.05"
1-5/16", 10 mm pitch
0.787”, 5 mm pitch
300"/min
200"/min
2.677"
6"
M.T. #4
10 HP
2 HP
1.3 HP
4410 LBS
5830 LBS
105" x 80" x 90"
