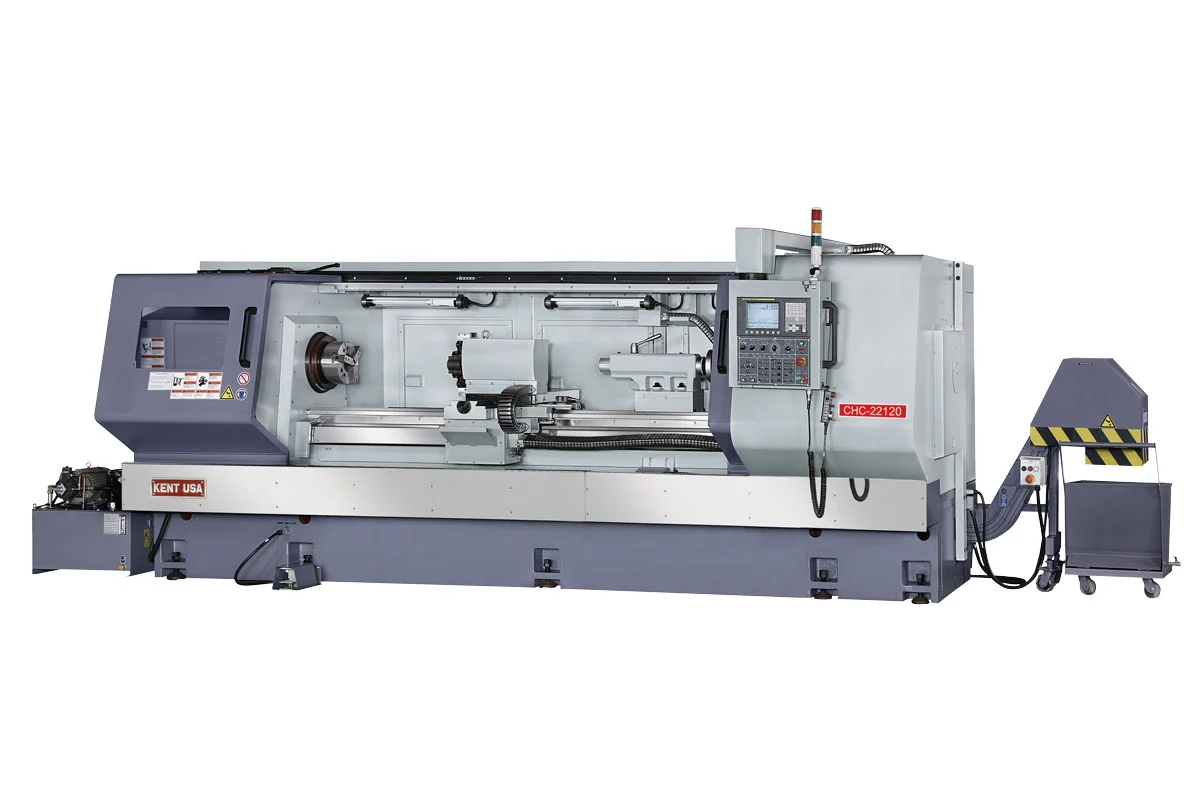

NEW KENT CHC-22 SERIES

Equipped With
KENT USA MODEL CHC-22 SERIES CNC PRECISION LATHE - NEW
PRODUCT FEATURES
15 HP Fanuc Servo Spindle motor
4 operating modes: Manual, Teach-in, Conversational, and CNC
Rigid Meehanite castings with extra ribbing
Induction hardened and ground ways
4 speed Auto-shifting gearbox with alloy steel gears that are hardened and ground
Extra large precision ground ballscrews
20-2000 RPM range; electronic handwheels
Auto Lube system with metered Check valves
STANDARD ACCESSORIES
Fanuc 0i-Mate TD CNC Control
Fanuc servo spindle motor
Auto lubrication unit
Flood coolant system
OPTIONAL ACCESSORIES
3-jaw scroll chuck
4-jaw independent chuck
Face plate
Hydraulic chuck
Hydraulic tailstock
Follow rest
Quick change toolpost
Royal live center
Swing Over Bed
Swing Over Cross Slide
Distance Between Centers
Width of Bed
Spindle Nose
Spindle Bore
Spindle Taper
Spindle Speeds
Longitudinal Travel (Z-Axis)
Cross Slide Travel (X-Axis)
Z-Axis Ballscrew Diameter
X-Axis Ballscrew Diameter
Z-Axis Rapid Traverse Speed
X-Axis Rapid Traverse Speed
Tailstock Quill Diameter
Tailstock Quill Travel
Tailstock Taper
Spindle Motor
AC Servo Motor (Z-Axis)
AC Servo Motor (X-Axis)
Net Weight
Gross Weight
Packing Dimension
CHC-22 SERIES
21.7"
11.8"
40" / 60" / 80" / 120"
13.58"
ASA A2-8
3.58"
M.T. #5
35-3500 RPM
30.7" / 50.4"/ 70.1" / 109.4"
11.8"
1.97", 10 mm pitch / 2.48", 10 mm pitch
0.98", 5 mm pitch
394"/min
295"/min
3.346"
7"
M.T. #5
15 HP
3.4 HP
2.4 HP
8910 LBS / 9680 LBS / 10560 LBS / 11660 LBS
9790 LBS / 10780 LBS / 11880 LBS / 13200 LBS
126" x 90.6" x 87.8" / 204.7" x 90.6" x 87.8"
